Transaxle Oil Level Check

  1. Remove the filler plug.
  2. Check that the oil level is up to the lower edge of the filler plug hole.
  3. Check that the oil is not noticeably dirty.
  4. Tighten the filler plug to the specified torque.
    1. Tightening torque: 32+/-2 N.m (23+/-2 ft-lb)

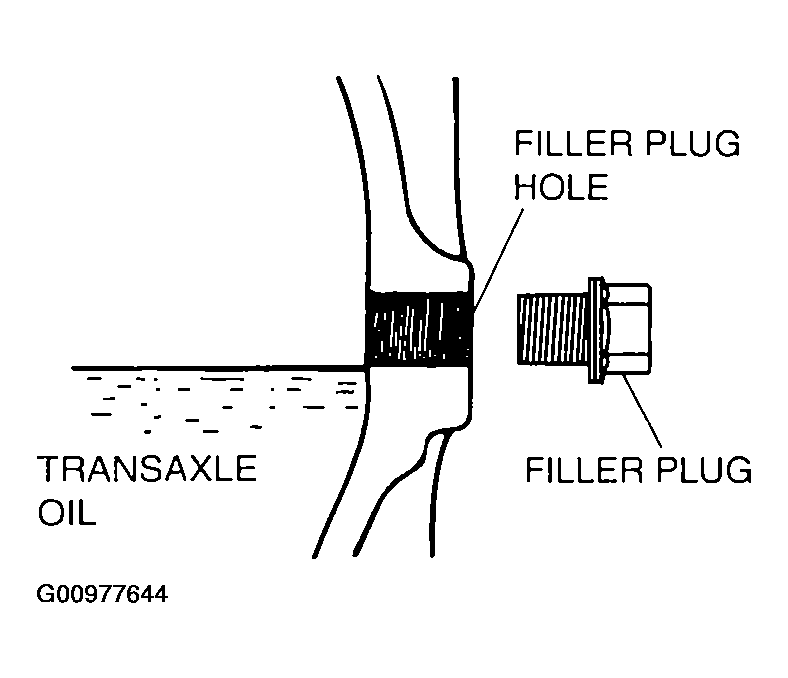

    Fig 1: Checking oil level
    G00977644Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
