Transfer Oil Replacement

  1. Remove the filler plug.
  2. Remove the drain plug and drain the oil.
  3. Tighten the drain plug to the specified torque.
    1. Tightening torque: 32+/-2 N.m (23+/-2 ft-lb)
  4. Fill with hypoid gear oil API classification GL-5 SAE90 until the level comes to the lower portion of filler plug hole.
    1. Quantity: 0.55 dm 3  (0.58 quart)
  5. Tighten the filler plug to the specified torque.
    1. Tightening torque: 32+/-2 N.m (23+/-2 ft-lb)

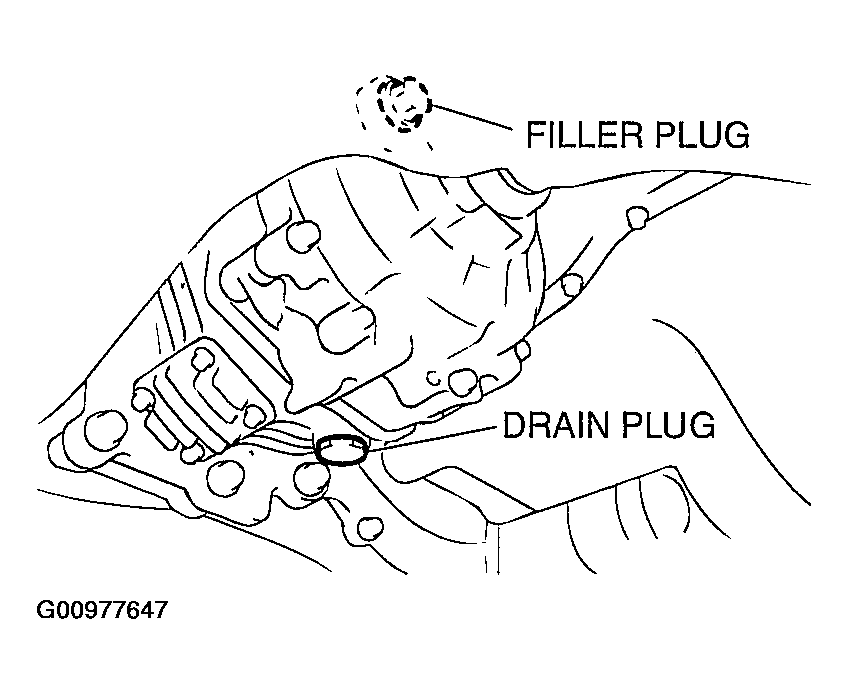

    Fig 1: Replacing Transfer Oil
    G00977647Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
