<< E >> Transfer Assembly Removal

With the engine mount and transaxle assembly towards the front of the vehicle, remove the transfer assembly from between the engine block and crossmember.

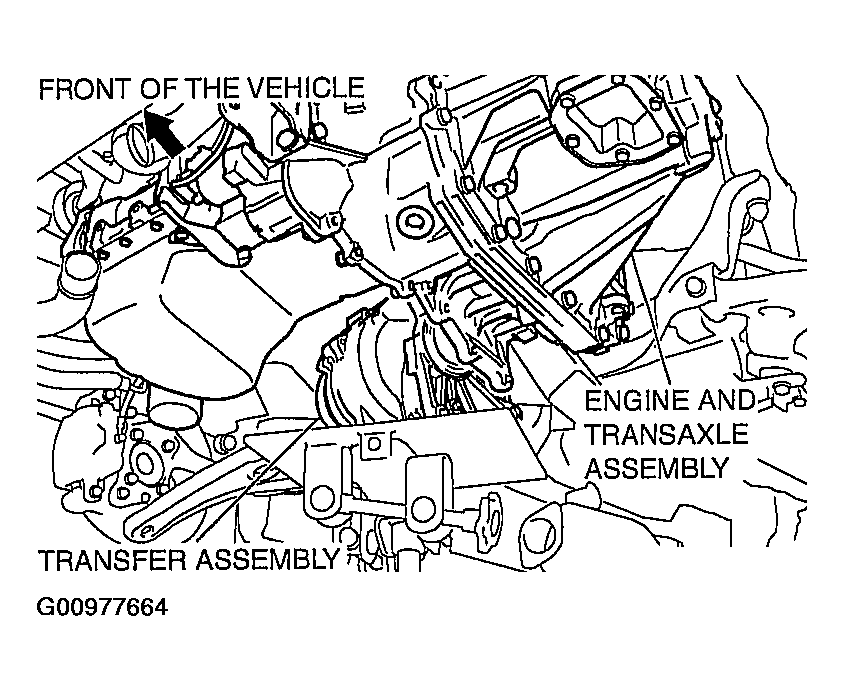

Fig 1: Removing Transfer Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
