INSPECTION PROCEDURE P-10: The Liftgate Lock Key Cylinder Switch < ECLIPSE > or the Trunk Lid Lock Key Cylinder Switch < ECLIPSE SPYDER > Signal is not Sent to the ETACS-ECU.: Notes

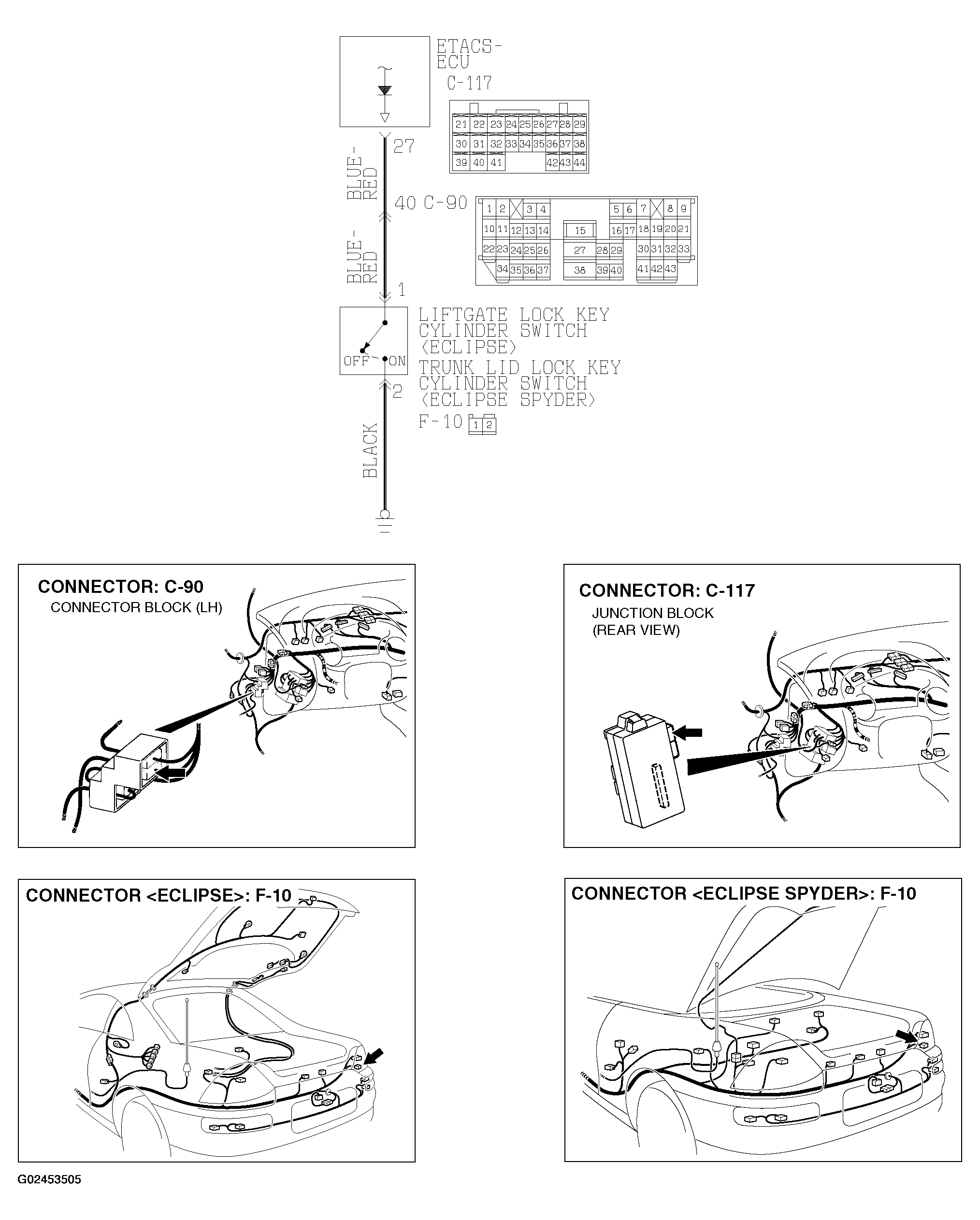

Fig 1: Liftgate Lock Key Cylinder Switch (Eclipse) Or Trunk Lid Lock Key Cylinder Switch (Eclipse Spyder) Input Circuit Diagram & Connector Identification
G02453505Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
