INSPECTION PROCEDURE 5: The Ambient Temperaure and Compass Screen do not Change.: Notes

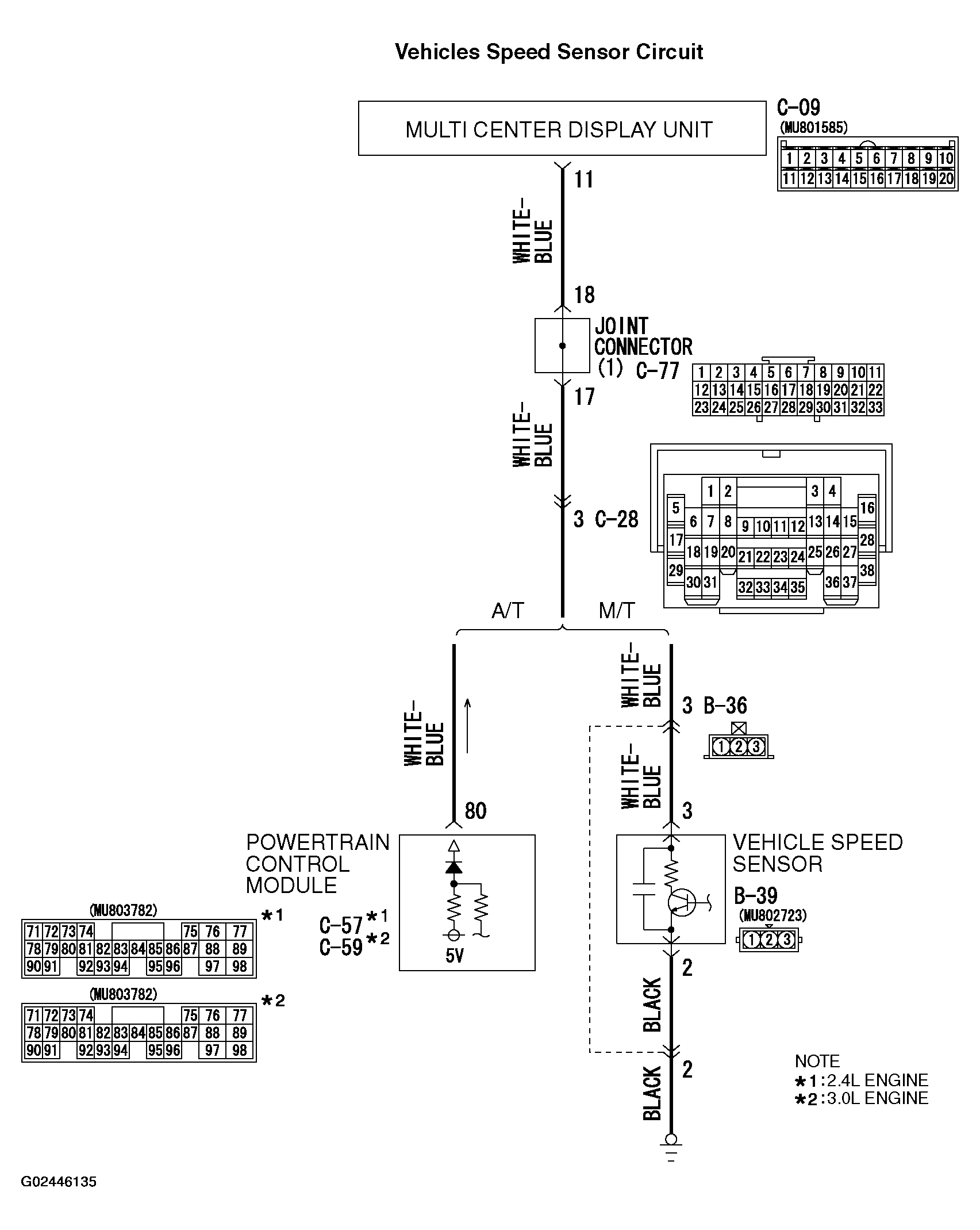

Fig 1: Identifying Vehicles Speed Sensor Circuit Diagram & Connector Identifiation (1 Of 2)
G02446135Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

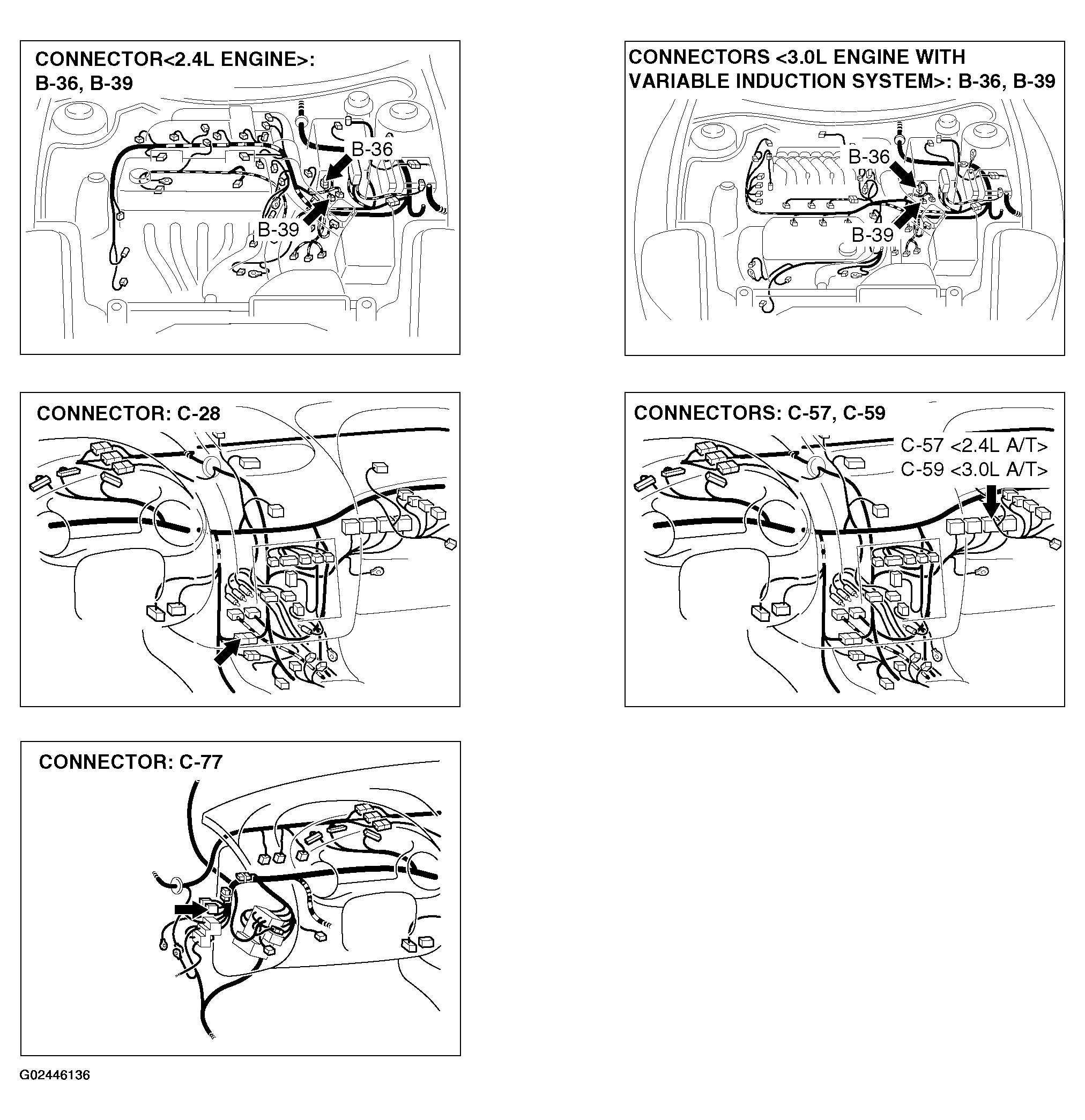

Fig 2: Identifying Vehicles Speed Sensor Circuit Diagram & Connector Identifiation (2 Of 2)
G02446136Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
