>> B << Spider Assembly Installation

CAUTION: The driveshaft joint uses special grease. Do not mix old and new or different types of grease.
  1. Apply the repair kit grease to the spider axles and rollers of the spider assembly.

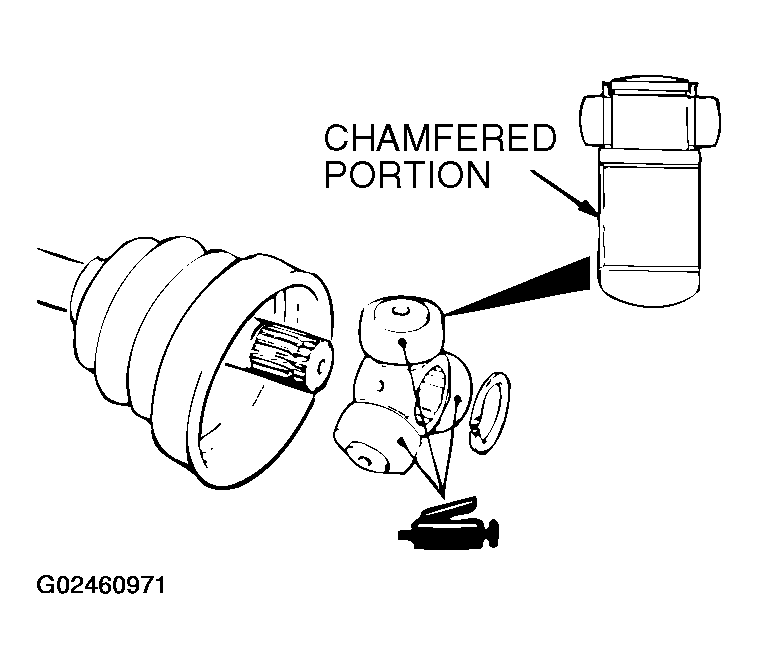

    Fig 1: Applying Repair Kit Grease To Spider Axles And Rollers Of Spider Assembly
    G02460971Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Face the chamfered portion of the spider assembly's spline toward the driveshaft, and then install the spider assembly to the driveshaft.
