>> F << TJ Case And Inner Shaft Assembly Installation

  1. Apply multipurpose grease to the inner shaft serration, and then press the inner shaft assembly into the TJ case.

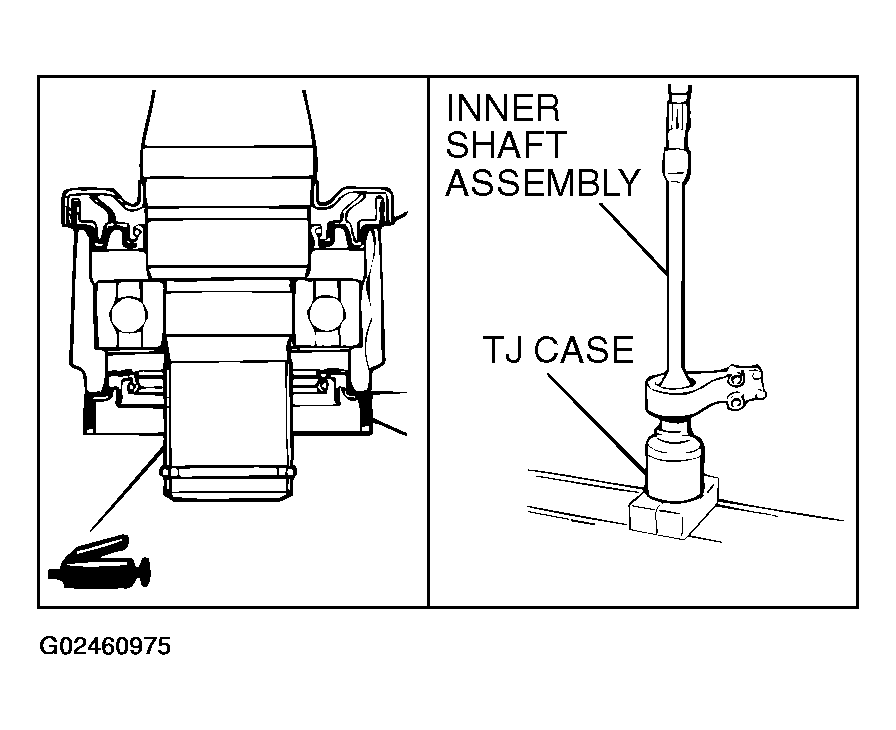

    Fig 1: Applying Multipurpose Grease To Inner Shaft Serration
    G02460975Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: The driveshaft joint uses special grease. Do not mix old and new or different types of grease.
  2. Fill the TJ case with repair kit grease and insert the driveshaft, and then refill the TJ case with repair kit grease.
    • Grease quantity:
    • 100 +/- 10 g (3.5 +/- 0.4 oz) < 2.4L ENGINE >
    • 175 +/- 10 g (6.2 +/- 0.4 oz) < 3.0L ENGINE >
    NOTE: The grease in the repair kit should be divided in half for use, respectively, at the joint and inside the boot.

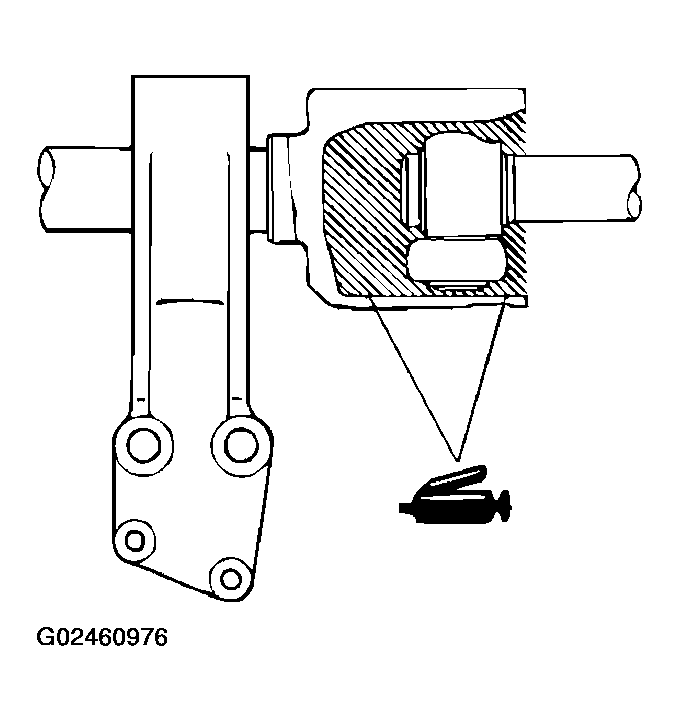

    Fig 2: Filling TJ Case With Repair Kit Grease
    G02460976Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
