INSPECTION PROCEDURE E-4: Keyless Entry System: The Trunk Is Not Opened When The Keyless Entry Transmitter "TRUNK" Button Is Operated.: Notes

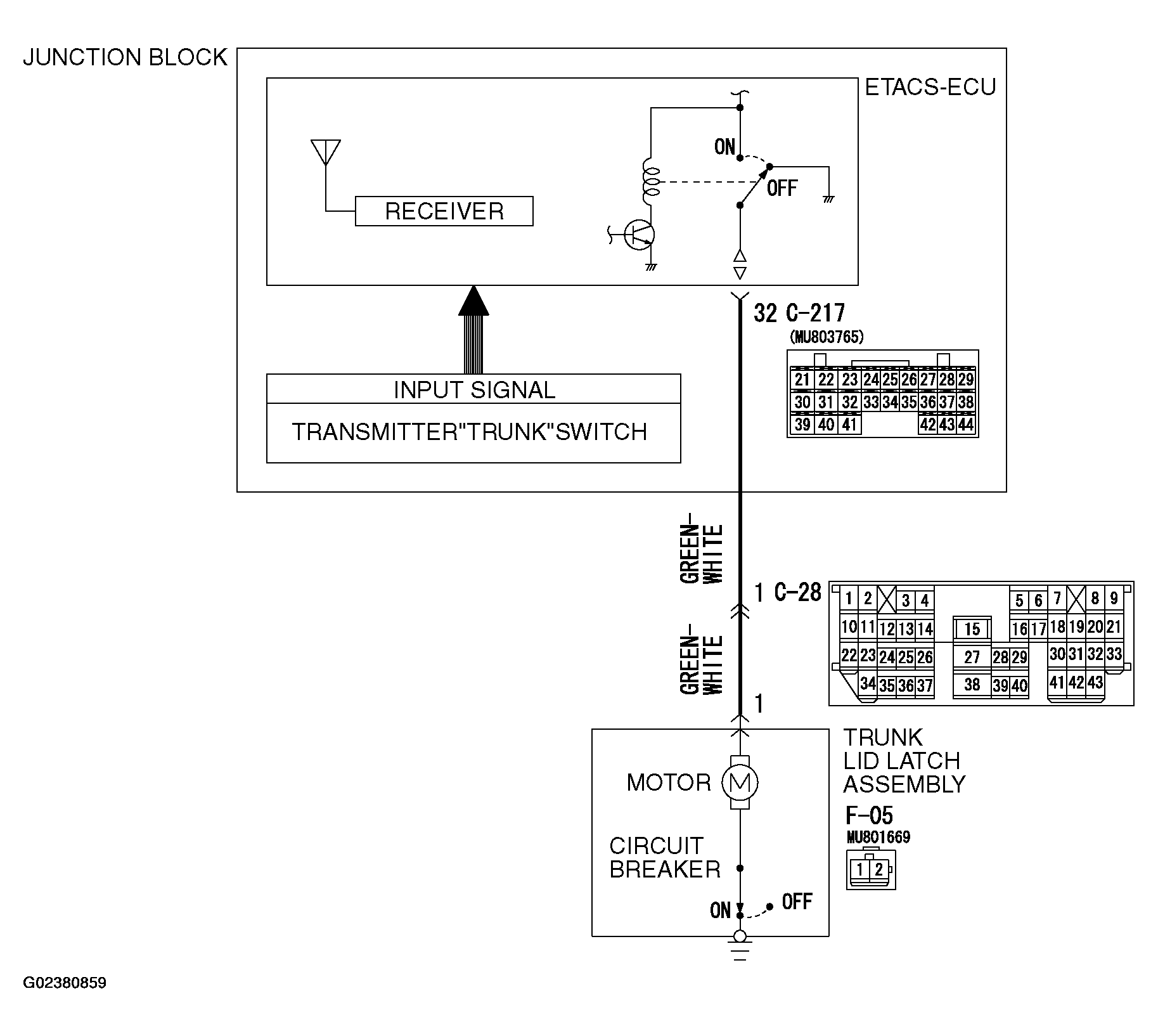

Fig 1: Transmitter "Trunk" Input Signal Circuit Diagram
G02380859Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

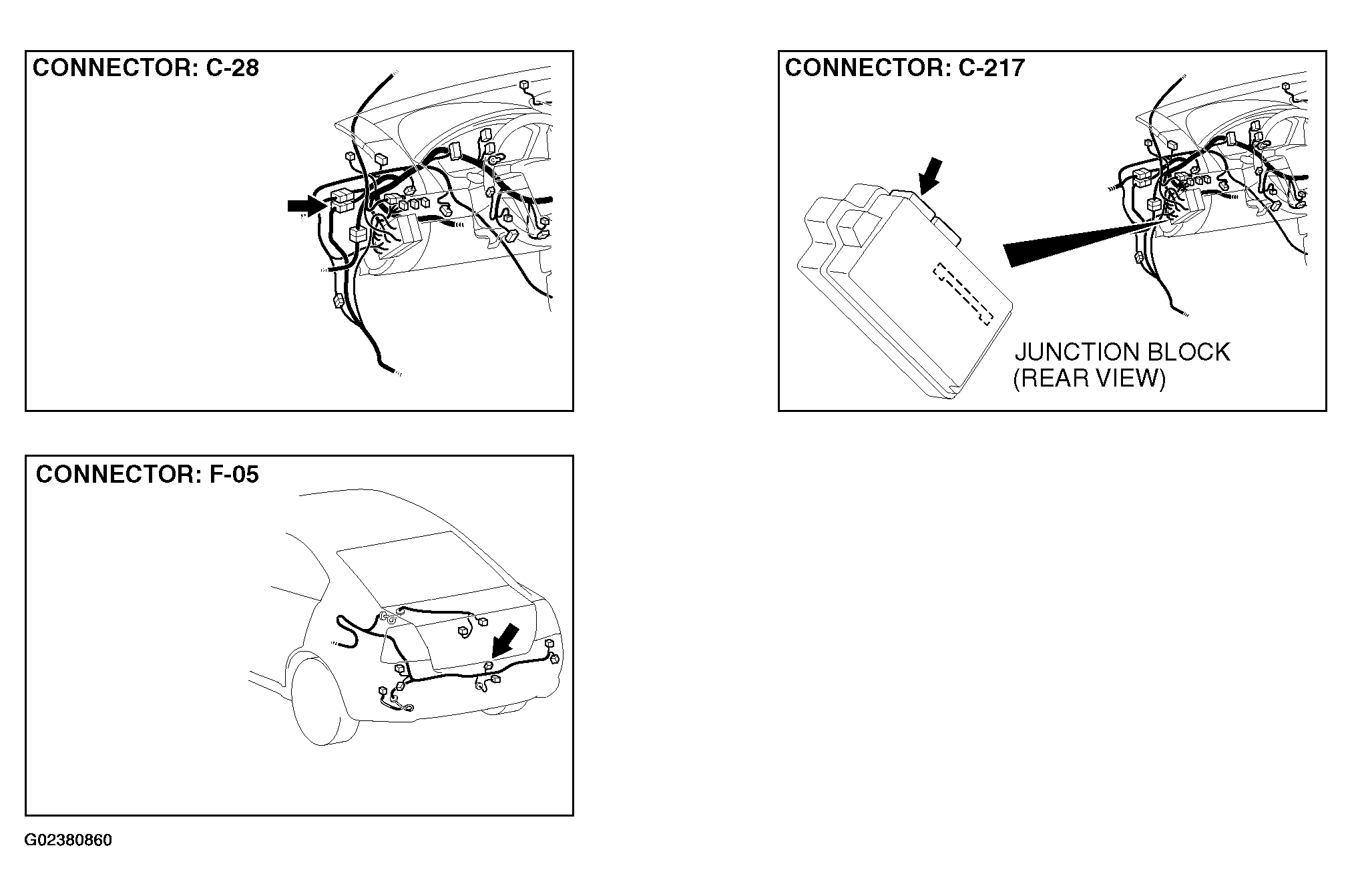

Fig 2: Identifying Connectors
G02380860Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
