INSPECTION PROCEDURE 10: Engine Coolant Temperature Gauge does not Work (other meters work).: Notes

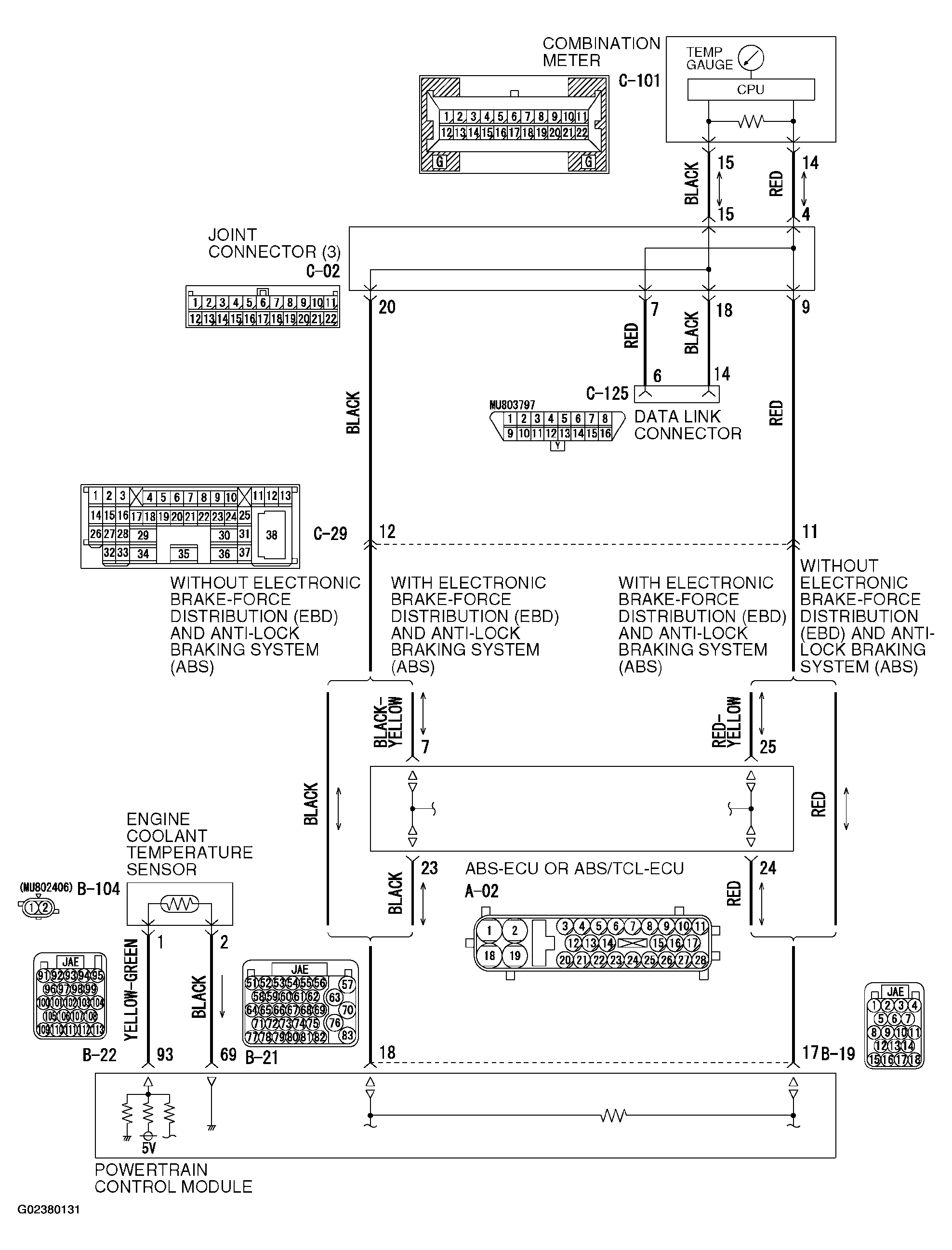

Fig 1: Identifying Engine Coolant Temperature Gauge Circuit Diagram
G02380131Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

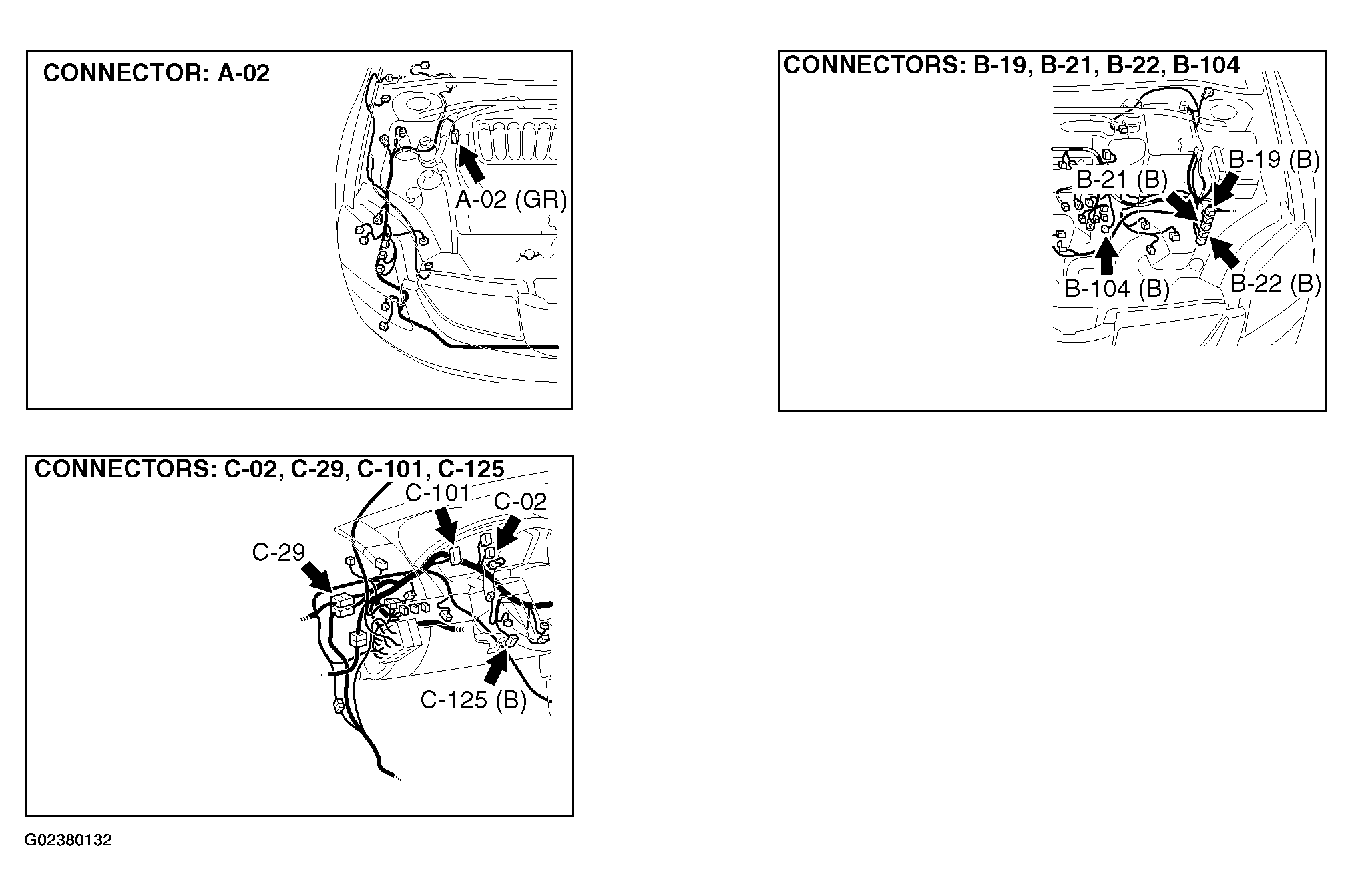

Fig 2: Engine Coolant Temperature Gauge Circuit Connectors
G02380132Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
