>> A << Spring Lower Pad Installation

Engage the three lugs of the spring lower pad into the holes on the front suspension strut as shown in illustration.

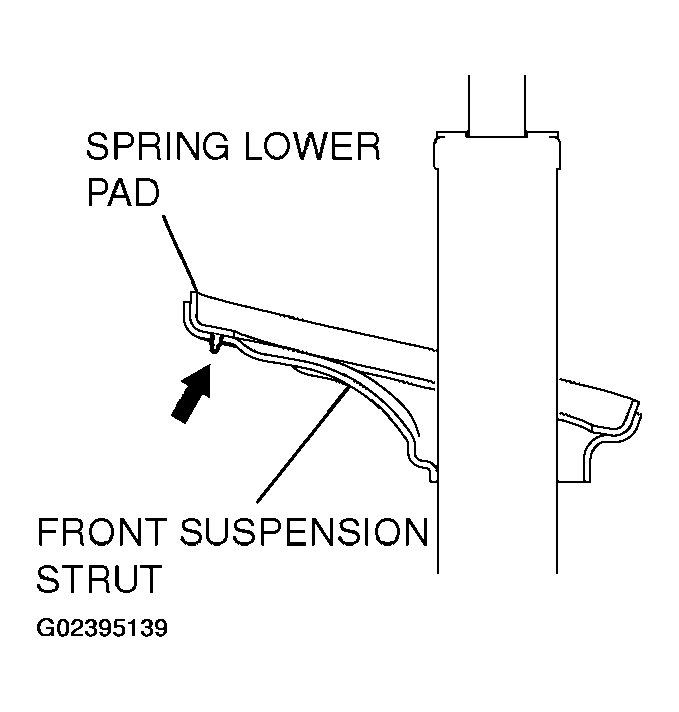

Fig 1: Engaging Three Lugs Of Spring Lower Pad Into Holes On Front Suspension Strut

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
