TCL Switch Check

  1. Remove the TCL switch. (Refer to TCL SWITCH ).
  2. Measure the resistance between terminal 1 and terminal 2 when the TCL switch is pressed or released. If the values measured at the time correspond to those in the TESTER CONNECTION & SPECIFIED CONDITION  table, the resistance values are correct.

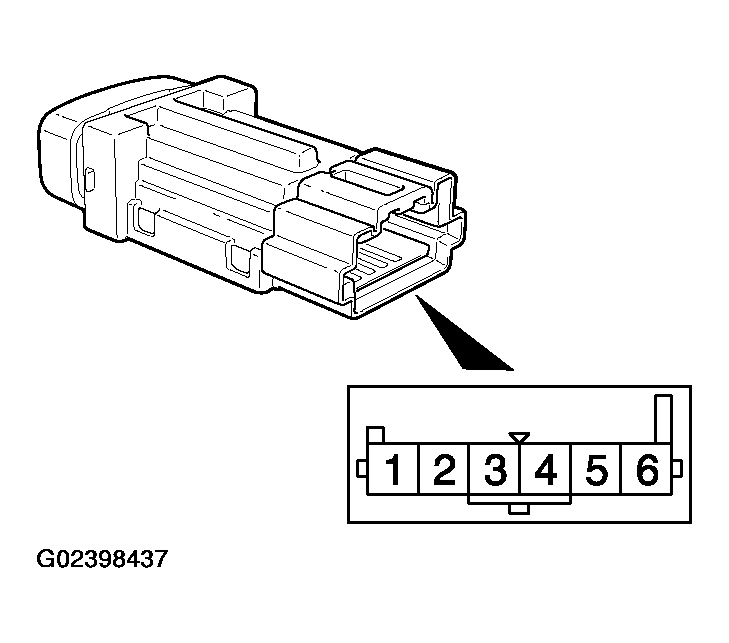

    Fig 1: Identifying TCL Switch Connector Terminals
    G02398437Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    TESTER CONNECTION & SPECIFIED CONDITION

    SWITCH POSITION TESTER CONNECTION SPECIFIED CONDITION
    Pressed 1-2 Less than 2 ohms
    Released 1-2 Open circuit
