INSPECTION PROCEDURE 5: When The TCL Switch Is Push On, TCL Does Not Cancelled.: Diagnosis

Required Special Tools:

  1. STEP 1. Measure the terminal voltage at ABS/TCL-ECU connector A-02.
    1. Disconnect the ABS/TCL-ECU connector A-02.
      Fig 1: Identifying ABS/TCL-ECU Connector A-02
      G02398414Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    2. Connect special tool MB991970 between the ABS/TCL-EUC and the body-side harness connector.
    3. Turn the ignition switch to the "ON" position.
    4. Measure the terminal voltage between special tool MB991970 connector terminal 6 (ABS/TCL-ECU connector A-02 terminal 6) and ground.
      • When the TCL switch is not pressed, the voltage should measure battery positive voltage (approximately 12 volts).
      • When the TCL switch is pressed, the voltage should measure 1 volt or less.

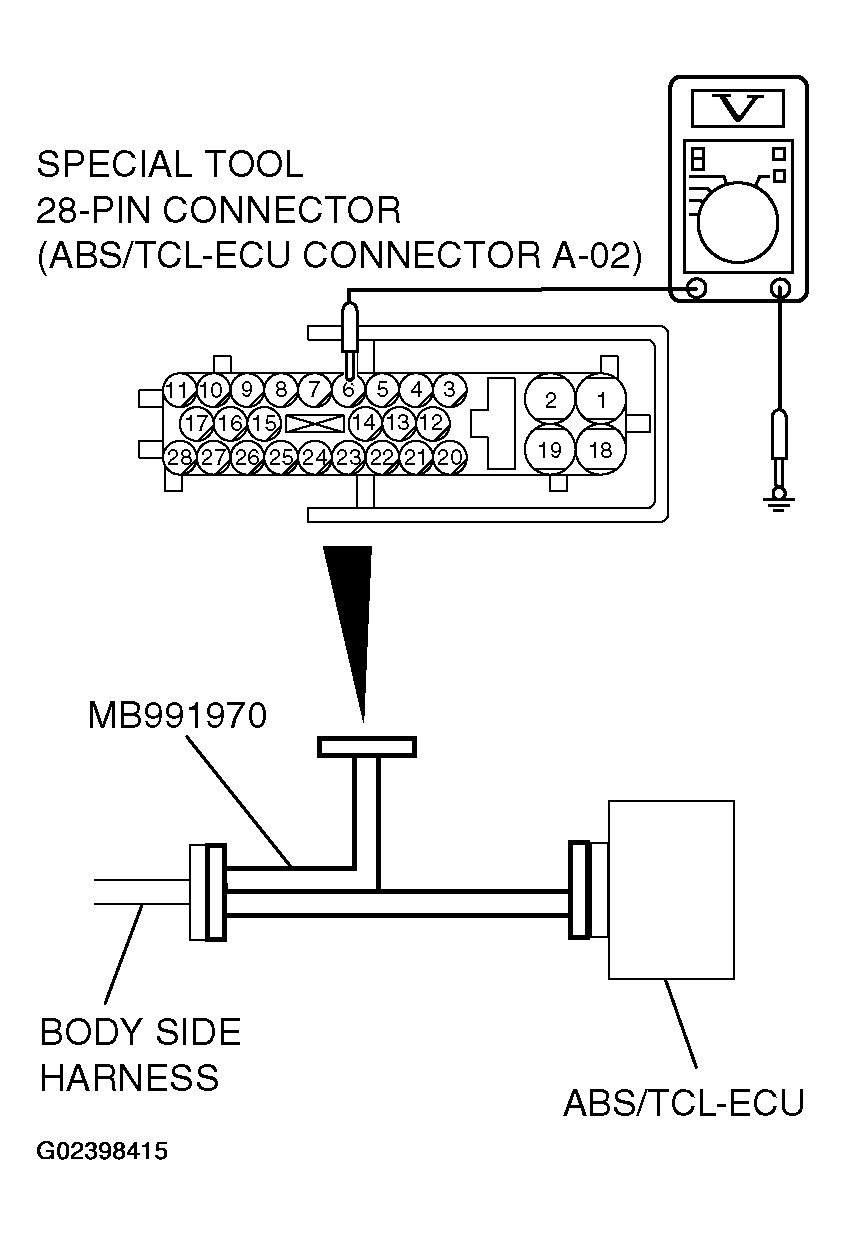

        Fig 2: Connecting Special Tool MB991970 Between ABS/TCL-EUC And Body-Side Harness Connector
        G02398415Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    5. Turn the ignition switch to the "LOCK" (OFF) position.
    6. Disconnect special tool MB991970 between the ABS/TCL-ECU and the body-side harness connector.
    7. Connect the ABS/TCL-ECU connector A-02.

    Q: Is the terminal voltage battery terminal voltage when the TCL switch is not pressed, and is the terminal voltage 1 volt or less when the TCL switch is pressed?

    1. YES :  Go to  Step 6.
    2. NO :  Go to Step 2.
  2. STEP 2. Check the TCL switch.
    1. Remove the TCL switch. (Refer to TCL SWITCH ).
    2. Connect an ohmmeter to the TCL switch between terminals 1 and 2.
    3. Check for continuity between terminals 1 and 2 when the TCL switch is operated.
      • There is no continuity between terminals 1 and 2 when the TCL switch is not pressed.
      • There is continuity between terminals 1 and 2 when the TCL switch is pressed.

    Q: Is there no continuity between terminals 1 and 2 when the TCL switch is not pressed, and is there continuity when the TCL switch is pressed?

    1. YES :  Install the TCL switch. (Refer to TCL SWITCH ). Then go to  Step 6.
    2. NO :  Replace the TCL switch. (Refer to TCL SWITCH ). Then go to  Step 7.

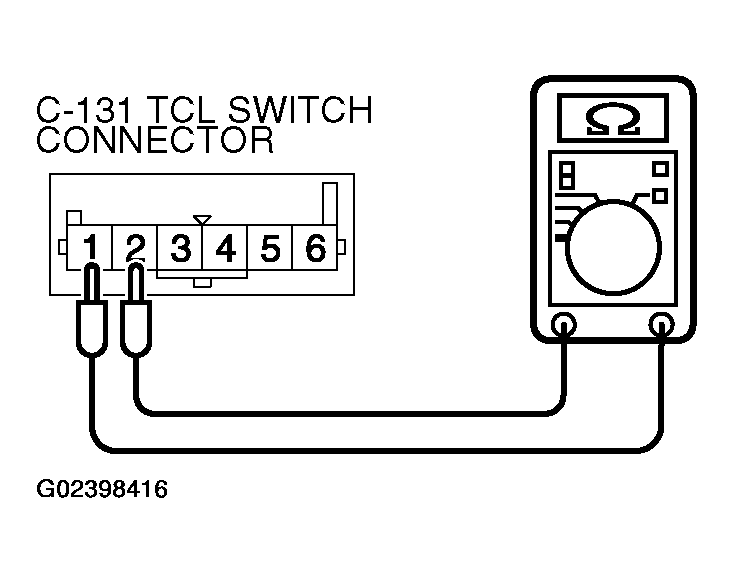

      Fig 3: Checking Continuity Between Terminals 1 And 2
      G02398416Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. STEP 3. Check ABS/TCL-ECU connector A-02, intermediate connector C-29 and TCL switch connectors C-131 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are there connectors and terminals in good condition?

    1. YES :  Go to Step 4.
    2. NO :  Repair or replace the faulty connector. (Refer to HARNESS CONNECTOR INSPECTION ). Then go to  Step 7.

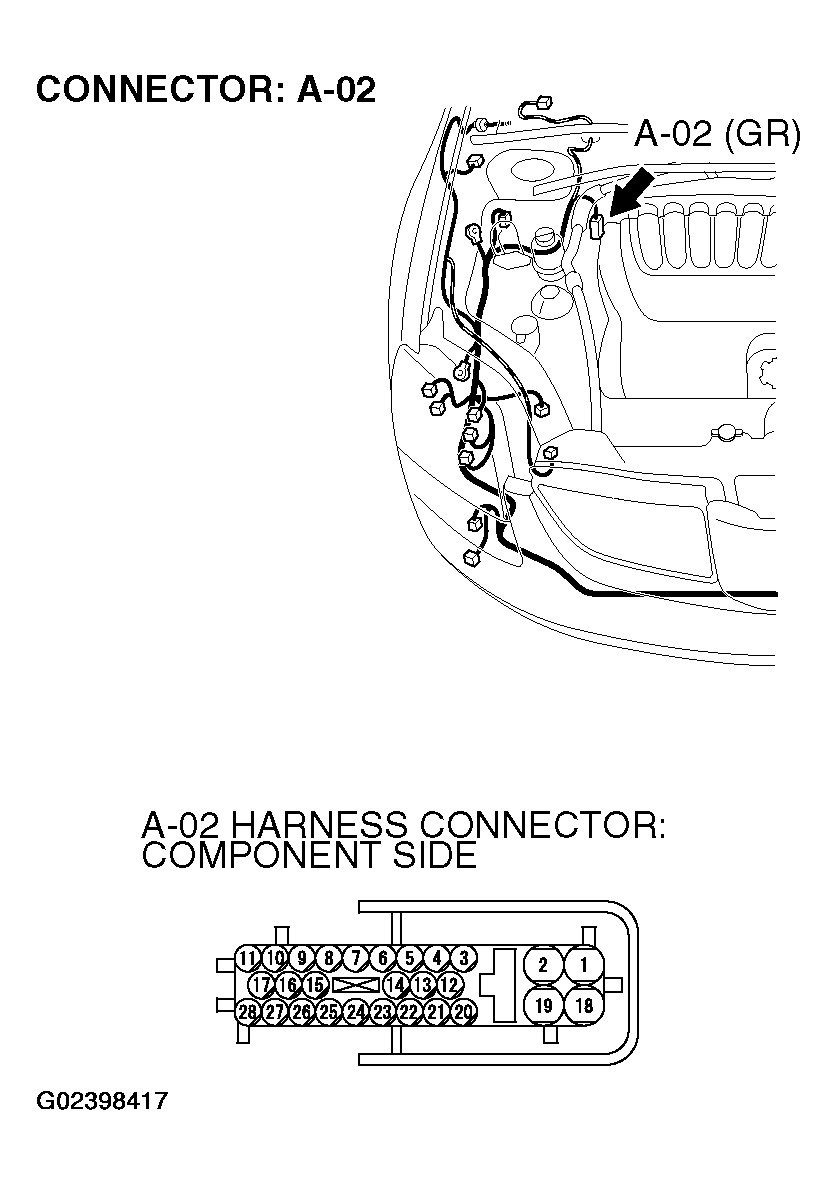

      Fig 4: Identifying ABS/TCL-ECU Connector A-02
      G02398417Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

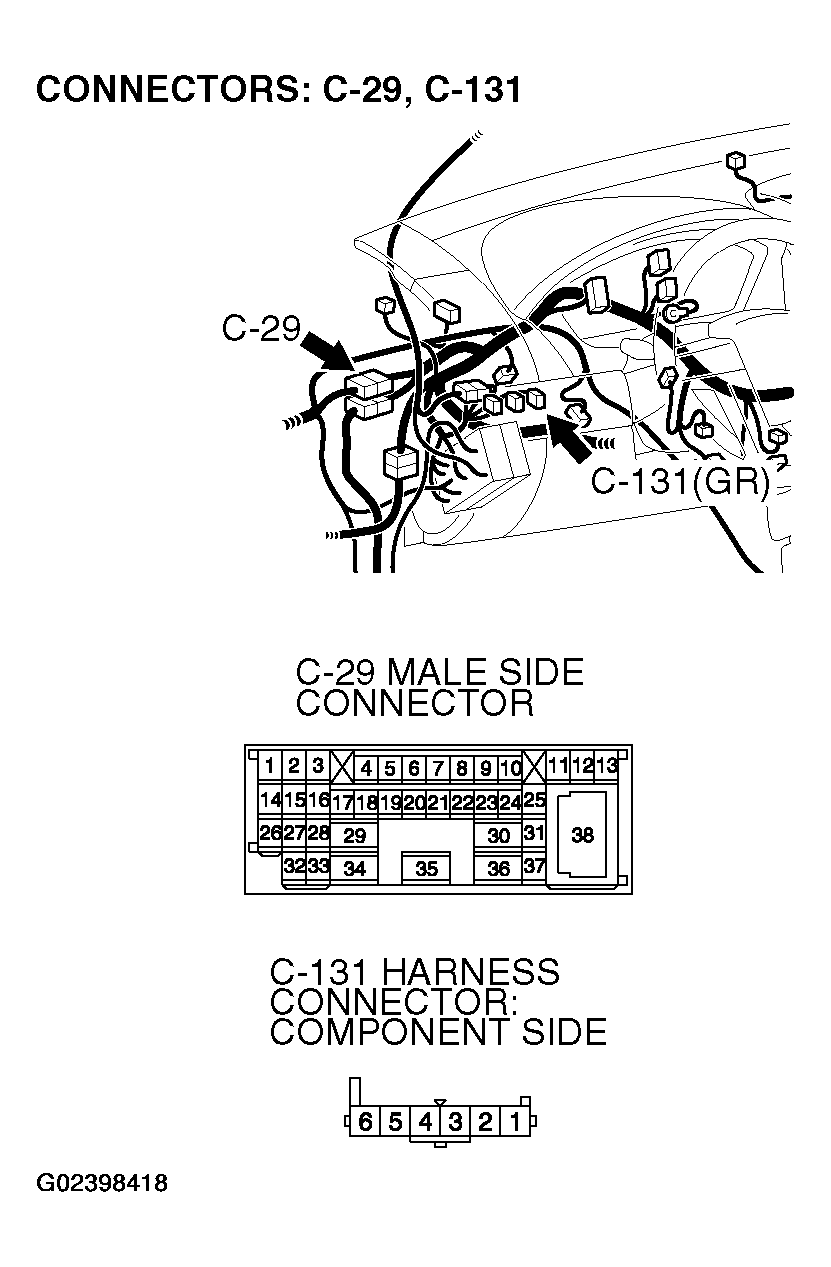

      Fig 5: Identifying Intermediate Connector C-29 & C-131
      G02398418Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. STEP 4. Check the harness wire between ABS/TCL-ECU connector A-02 terminal 6 and TCL switch connector C-131 terminal 1 for damage.

    Q: Are there harness wires in good condition?

    1. YES :  Go to Step 5.
    2. NO :  Repair the damaged harness wire. Then go to  Step 7.

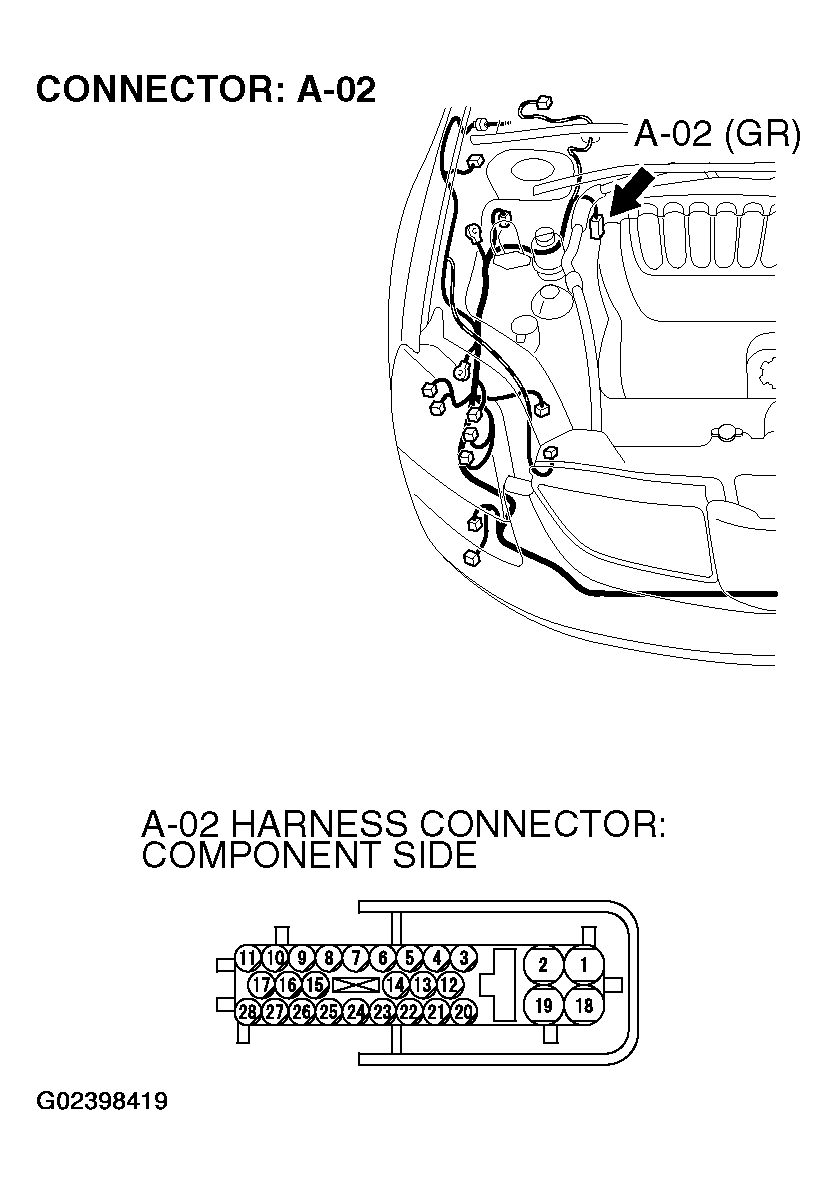

      Fig 6: Identifying Intermediate Connector A-02
      G02398419Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      Fig 7: Identifying Intermediate Connector C-131
      G02398420Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. STEP 5. Check the harness wire between TCL switch connector C-131 terminal 2 and ground for damage.

    Q: Is the harness wire in good condition?

    1. YES :  Go to Step 6.
    2. NO :  Repair the damaged harness wire. Then go to  Step 7.

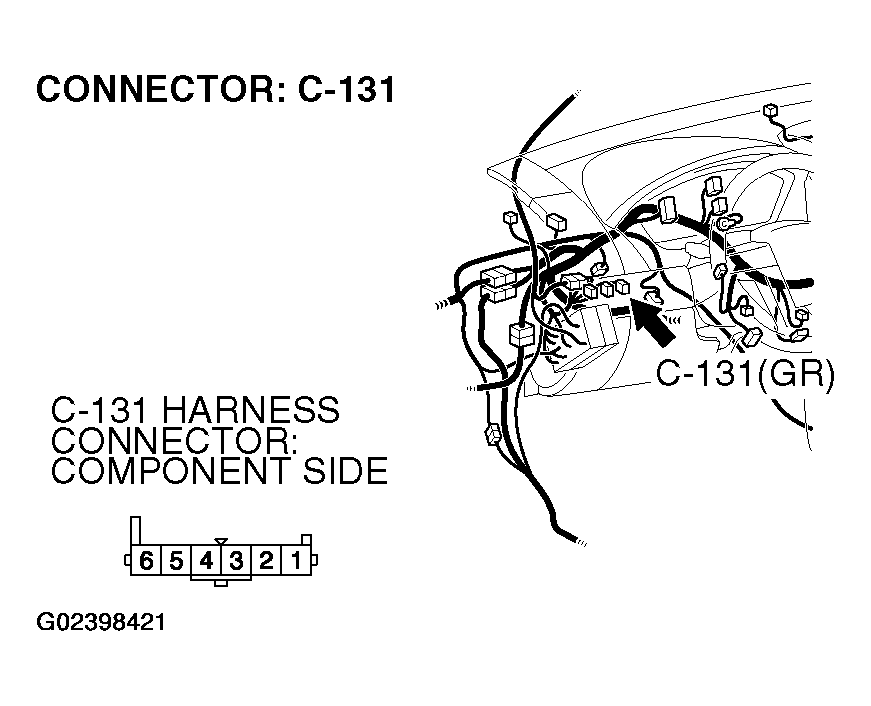

      Fig 8: Identifying Intermediate Connector C-131
      G02398421Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

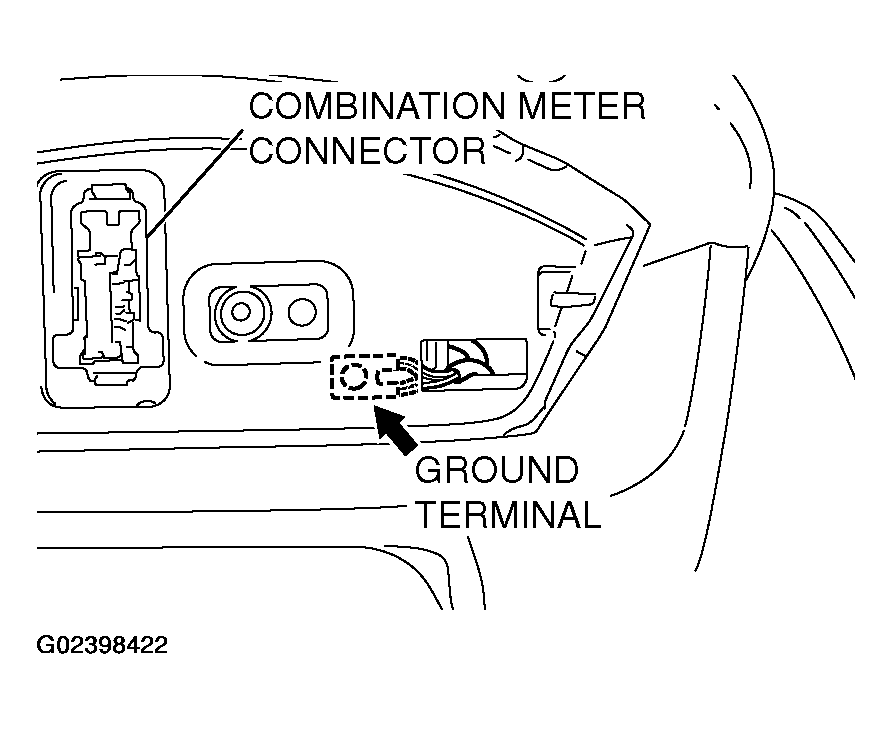

      Fig 9: Identifying Combination Meter Connector
      G02398422Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. STEP 6. Retest the system

    Q: Does TCL system cancelled, when the TCL switch is push on?

    1. YES :  It can be assumed that this malfunction is intermittent. (Refer to How to Use Troubleshooting/Inspection Service Points - HOW TO COPE WITH INTERMITTENT MALFUNCTION ).
    2. NO :  Replace the hydraulic unit (integrated with ABS/TCL-ECU). (Refer to HYDRAULIC UNIT ). Then Go to Step 7.
  7. STEP 7. Retest the system

    Q: Does TCL system cancelled, when the TCL switch is push on?

    1. YES :  The procedure is complete.
    2. NO :  Return to  Step 1.
