Section 10 (On-Vehicle Service - Except Evolution): General Description
WARNING:
This page is about a different variant/trim than selected.

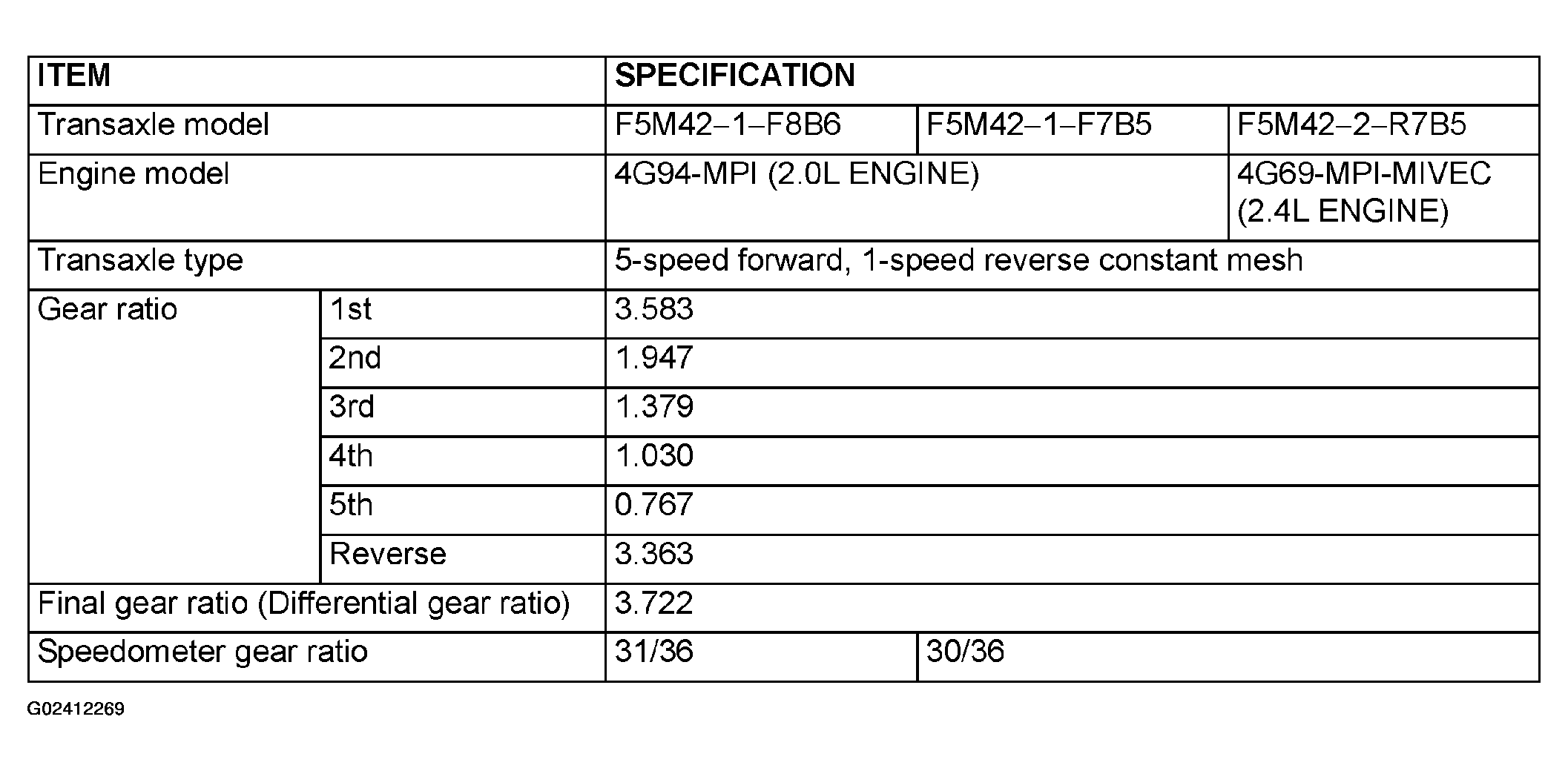

Fig 1: Manual Transaxle - General Description Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

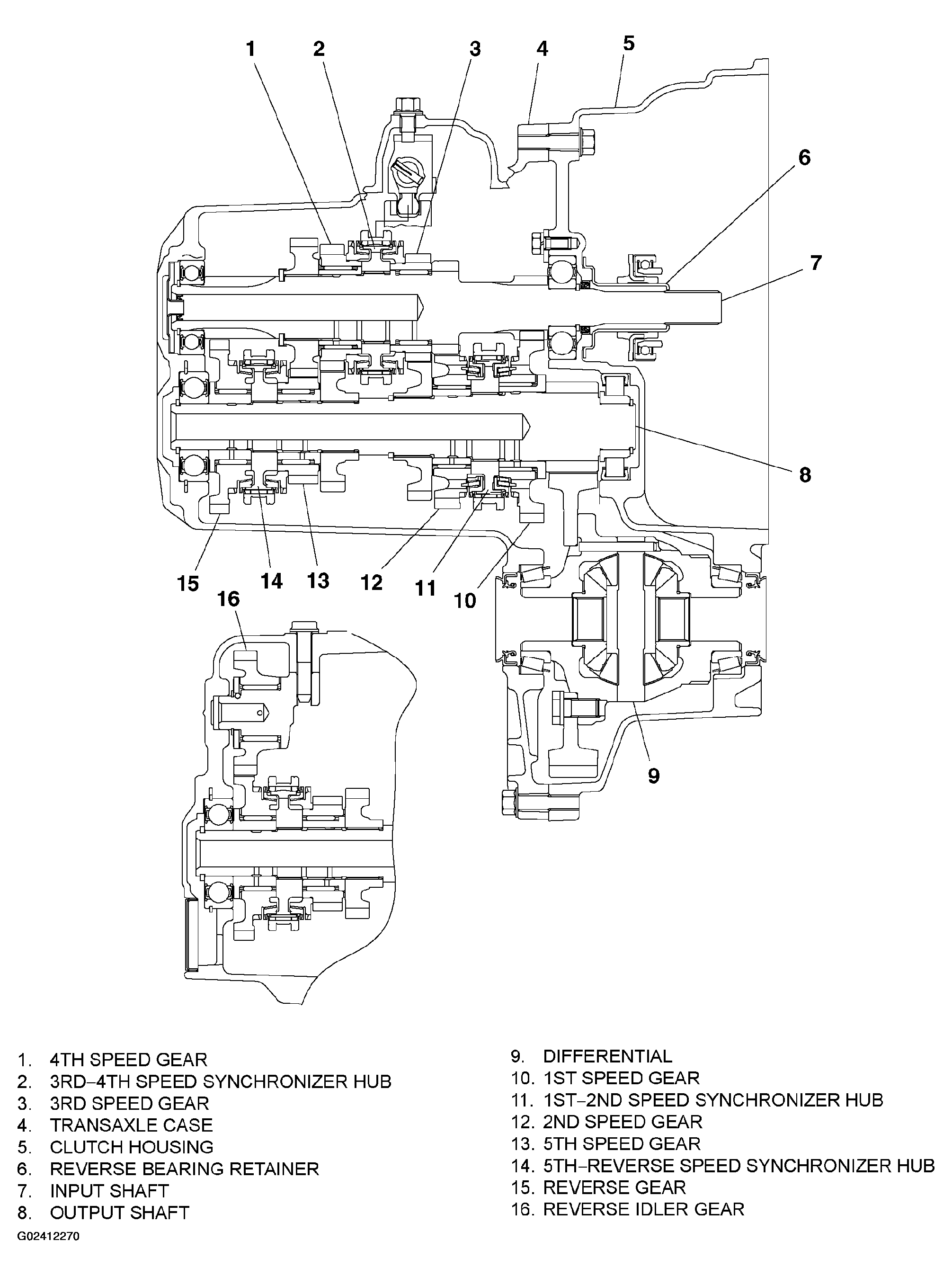

Fig 2: Manual Transaxle Sectional View (F5M42-1)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

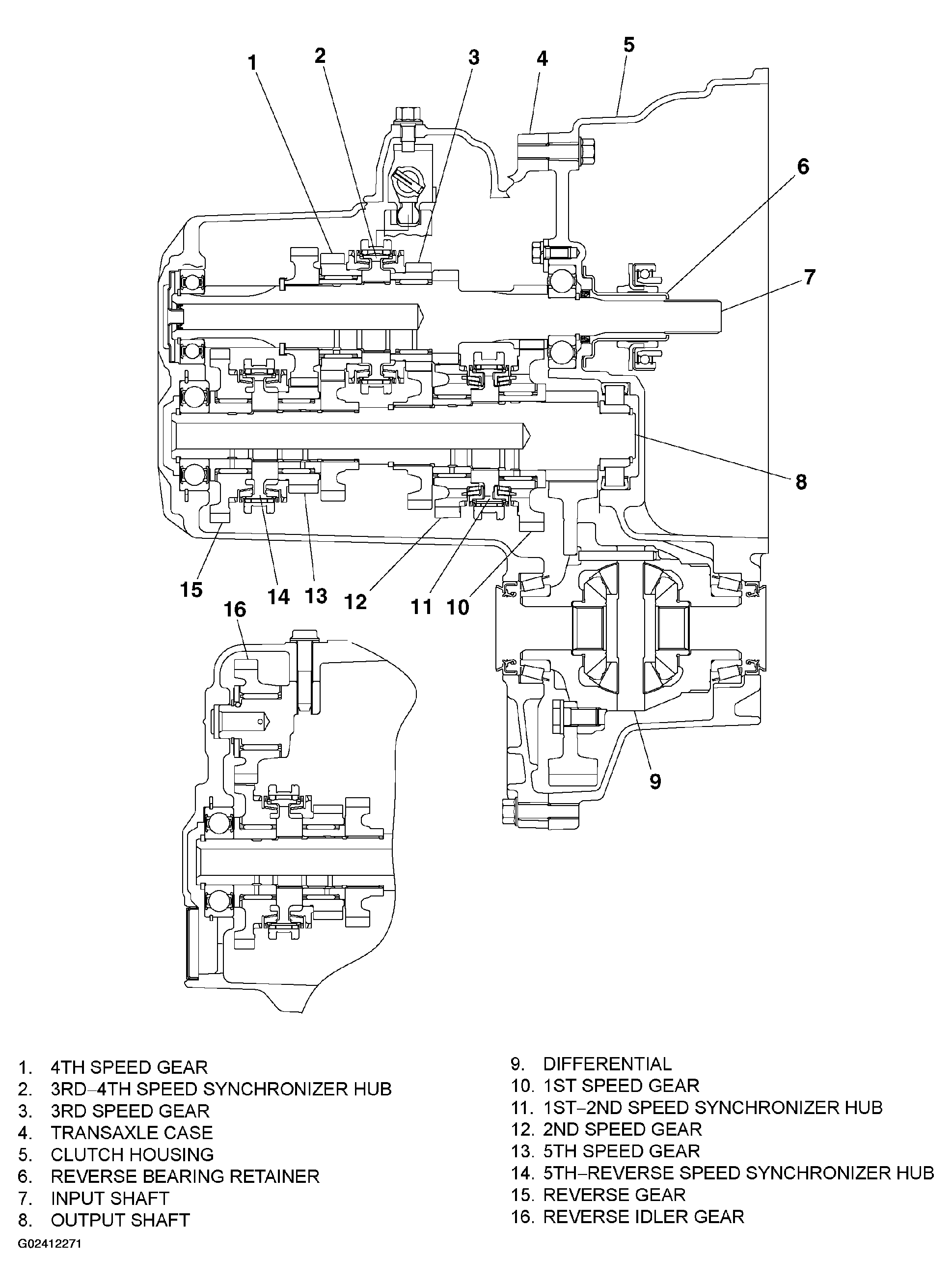

Fig 3: Manual Transaxle Sectional View (F5M42-2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
