>> C << Drive Shaft Nut Installation

WARNING: This page is about a different variant/trim than selected.
  1. Be sure to install the drive shaft washer in the specified direction.
    CAUTION: Before securely tightening the drive shaft nuts, make sure there is no load on the wheel bearings. Otherwise the wheel bearing will be damaged.
  2. Using special tool MB990767 (end yoke holder), tighten the drive shaft nut to the specified torque.
    • Tightening torque: 245 +/- 29 N-m (181 +/- 21 ft-lb)

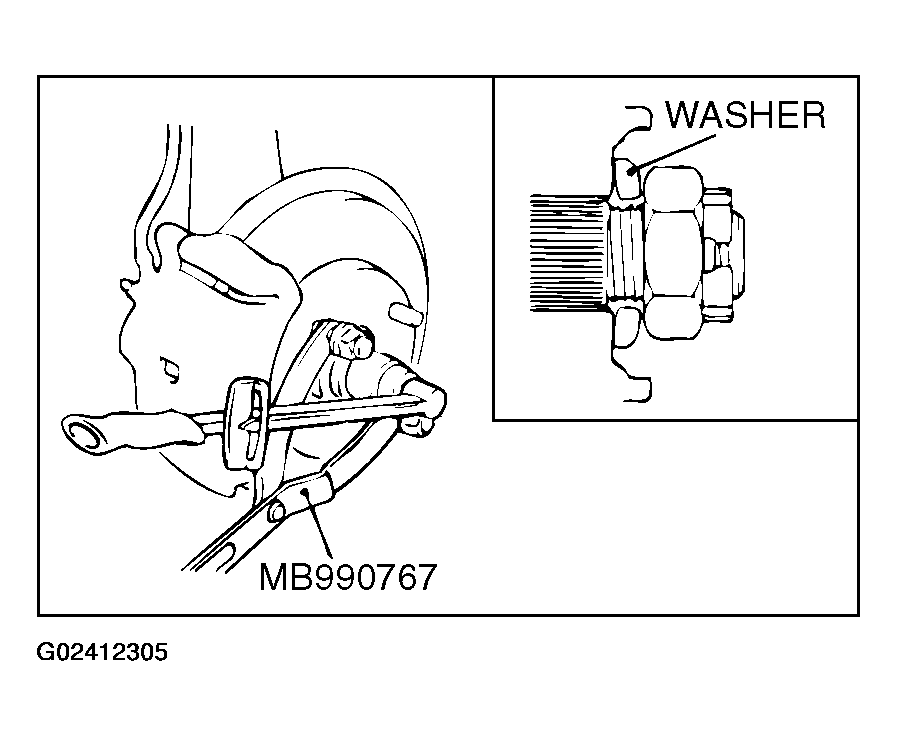

    Fig 1: Installing Drive Shaft Washer
    G02412305Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
