<< E >> Transaxle Mount Assembly Removal

WARNING: This page is about a different variant/trim than selected.

Jack up the transaxle assembly gently with a garage jack, and then remove the transaxle mount bracket.

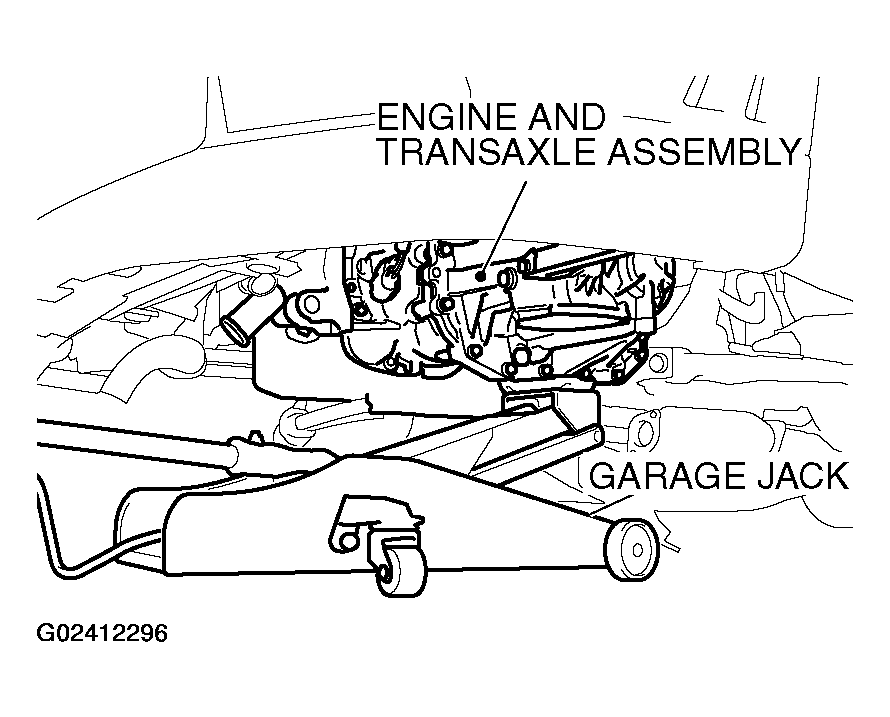

Fig 1: Jacking Up Transaxle Assembly Gently With Garage Jack
G02412296Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
