>> B << Shift Cable Connection/Shift Cable Clip (Gearshift Lever Side) Installation

WARNING: This page is about a different variant/trim than selected.

Make sure that there is no excessive play at the shift cable end gearshift cable clip. If there is excessive play or the shift cable clip is disengaged from the shift cable end, check the clip opening gap. If the gap is more than 9.5 mm (0.37 inch), squeeze the shift cable clip until the relaxed gap reaches 5 to 8 mm (0.20 to 0.31 inch).

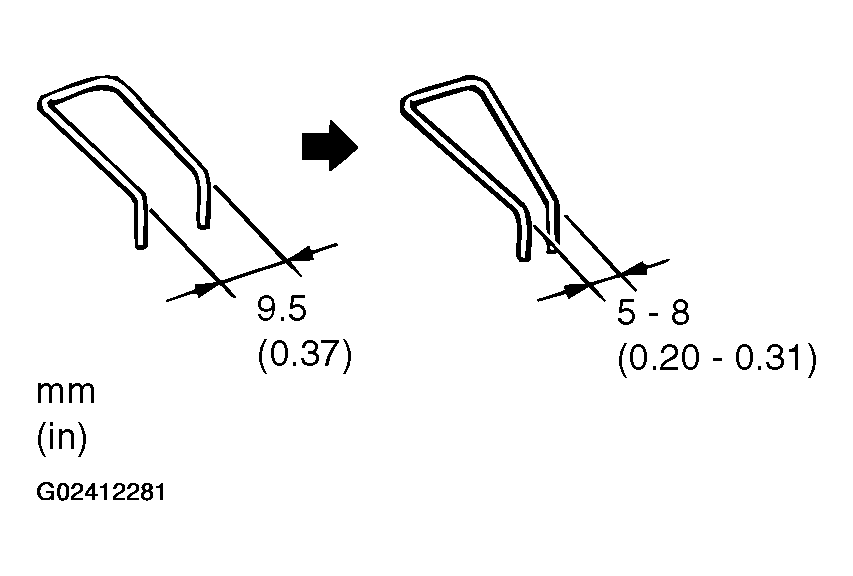

Fig 1: Checking Clip Opening Gap
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Engage the gearshift cable clip with the shift cable hook securely, and push the shift cable clip with your thumbs until it clicks in place.
Install the shift cable to the shift lever.

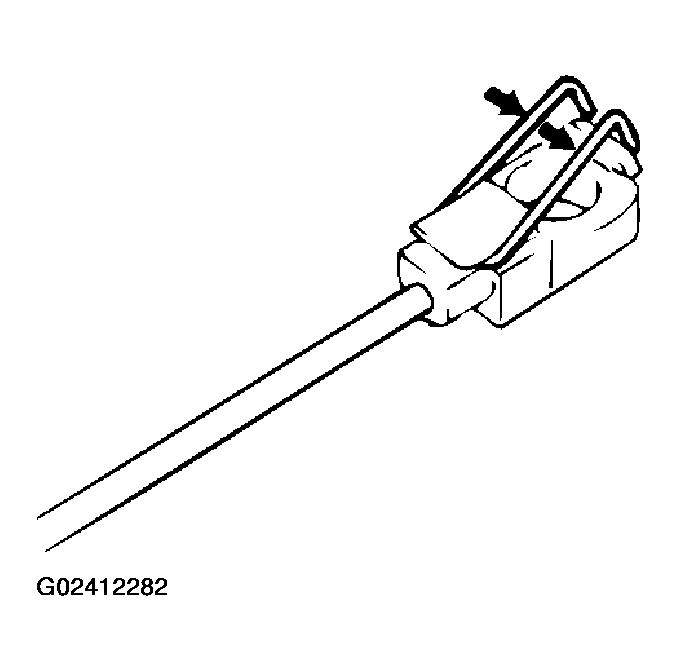

Fig 2: Engaging Gearshift Cable Clip With Shift Cable Hook
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
