Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
WARNING: Be careful not to subject the SRS-ECU to any shocks during removal and installation of the shift cable and select cable assembly.

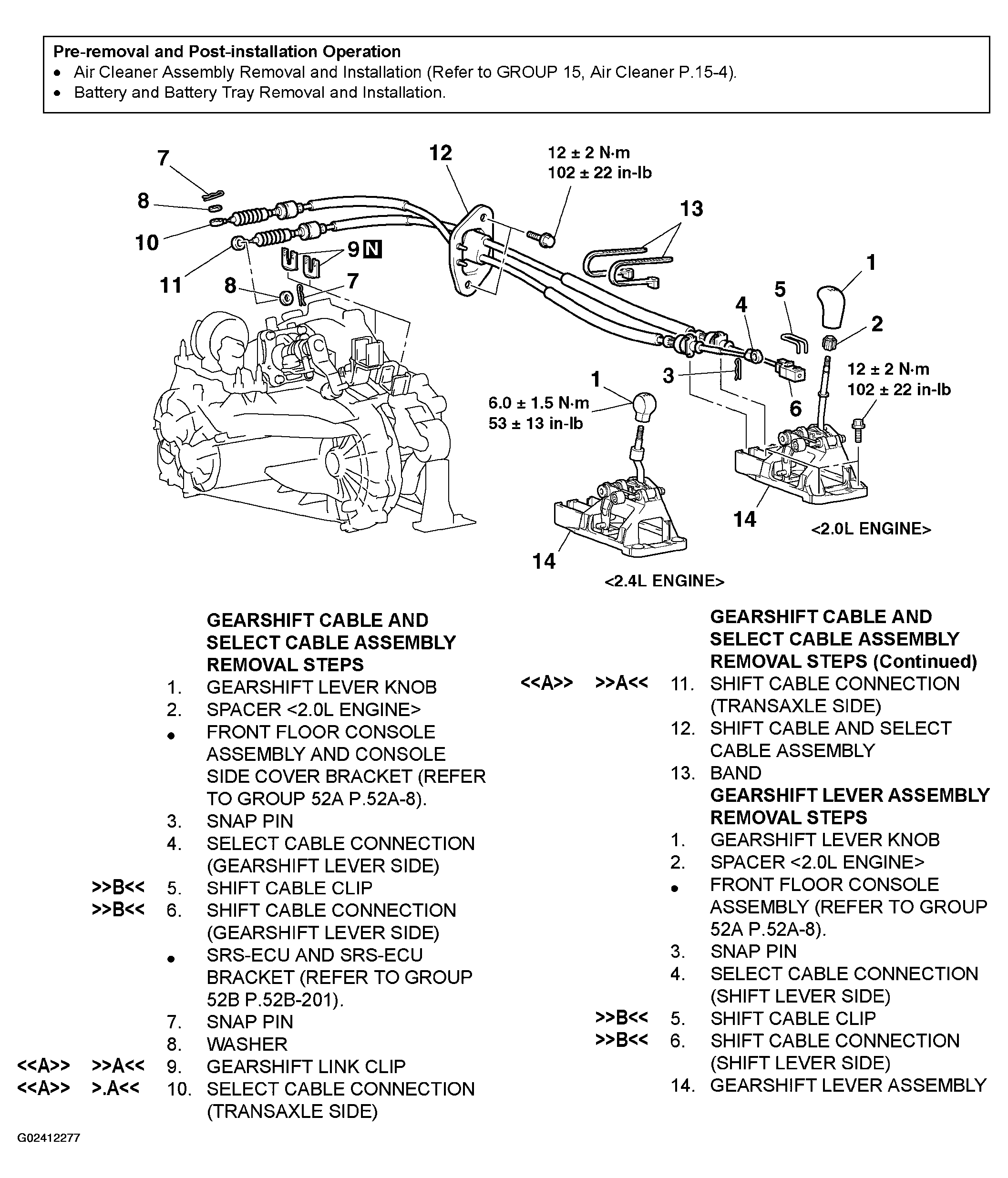

Fig 1: Removal Steps Of Transaxle Control
G02412277Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
