DTC 74: Proportioning Valve System: Notes

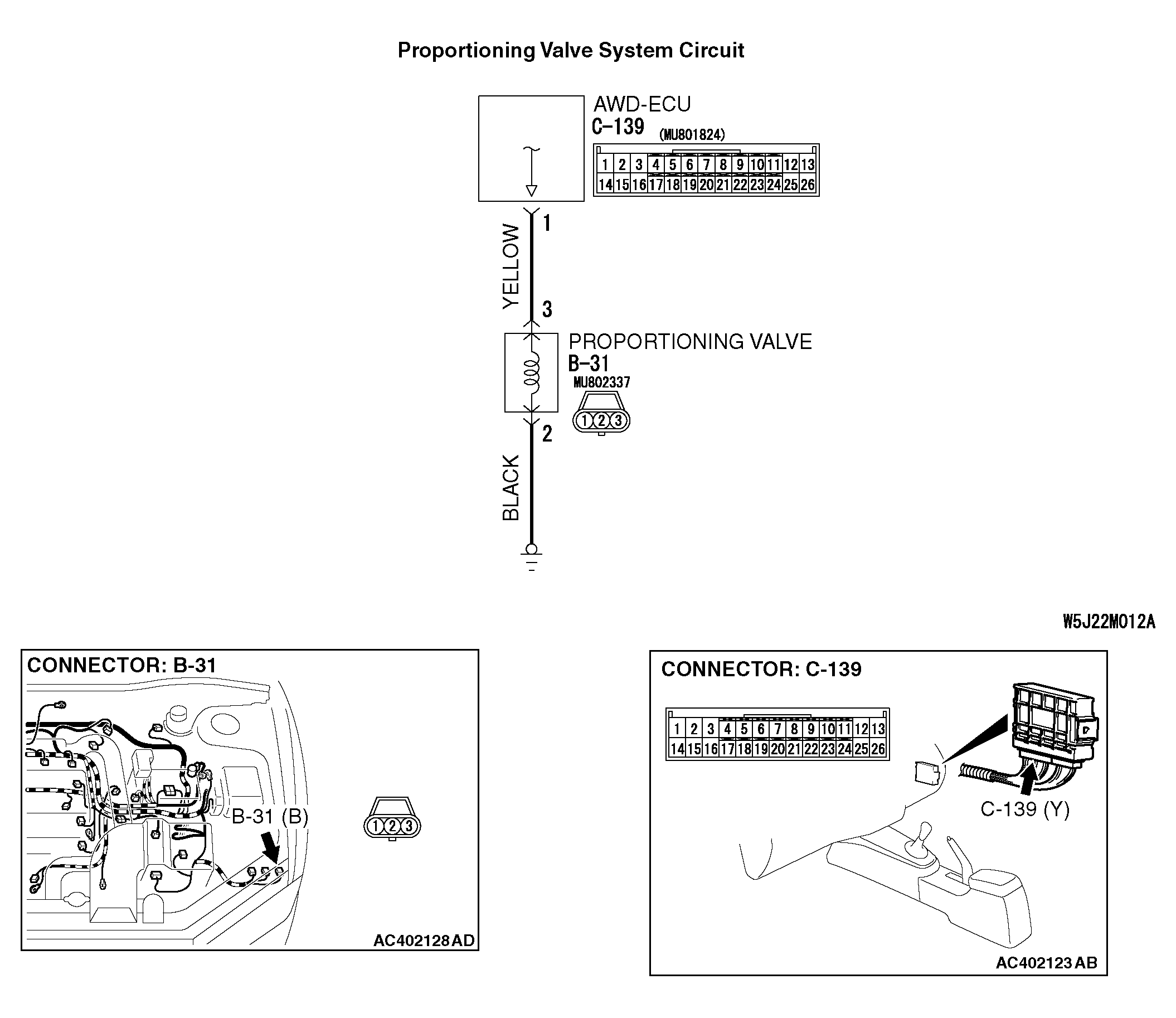

Fig 1: Proportioning Valve System Circuit Diagram
G04296504Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
