>> C << Shift Cable Connection (Shift Lever Side) Installation

Make sure that there is no excessive play at the shift cable end clip. If there is excessive play or the clip is disengaged from the shift cable end, check the clip opening gap. If the gap is more than 9.5 mm (0.37 inch), squeeze the clip until the gap reaches 5 to 8 mm (0.20 to 0.31 inch).

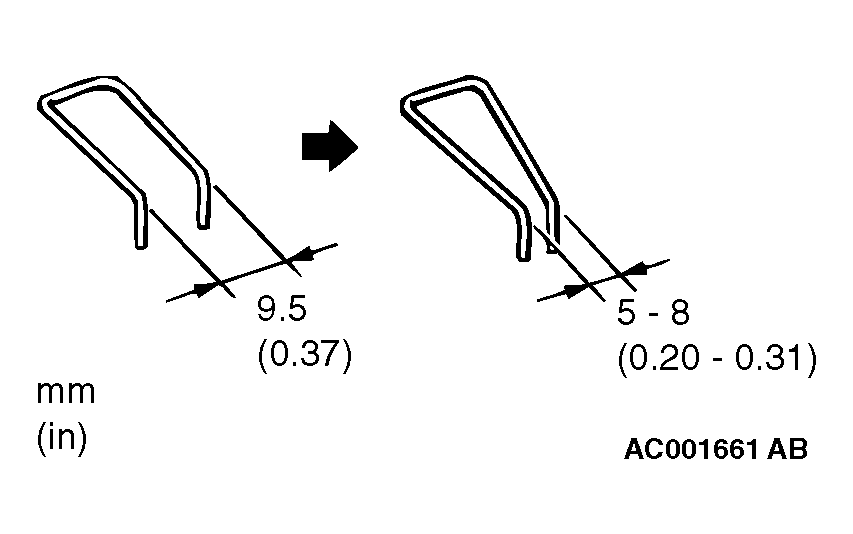

Fig 1: Identifying Clip
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Engage the clip with the shift cable hook securely, and push the clip with your thumbs until it clicks in place.
Install the shift cable to the shift lever.

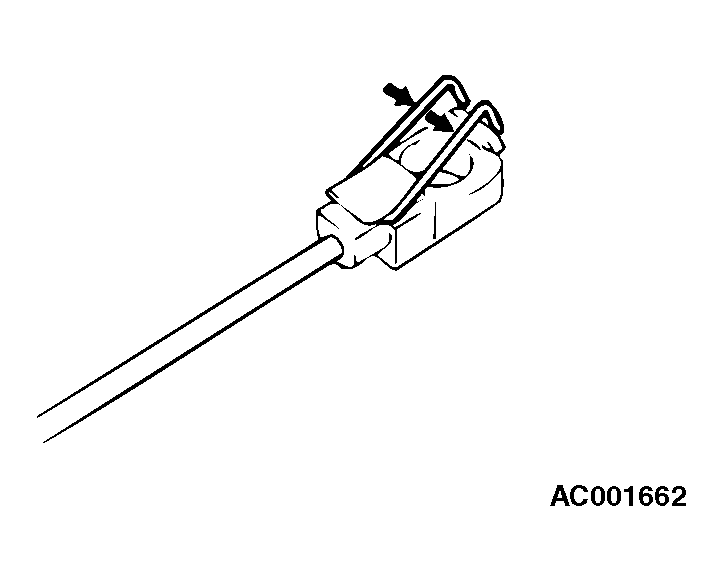

Fig 2: Installing Shift Cable To Shift Lever
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
