Manual Transmission On-Vehicle Service - Lancer Evolution
>>
Transaxle Control
>>
Shift Lever Assembly < W5M51 >
>>
Disassembly And Assembly
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Disassembly And Assembly

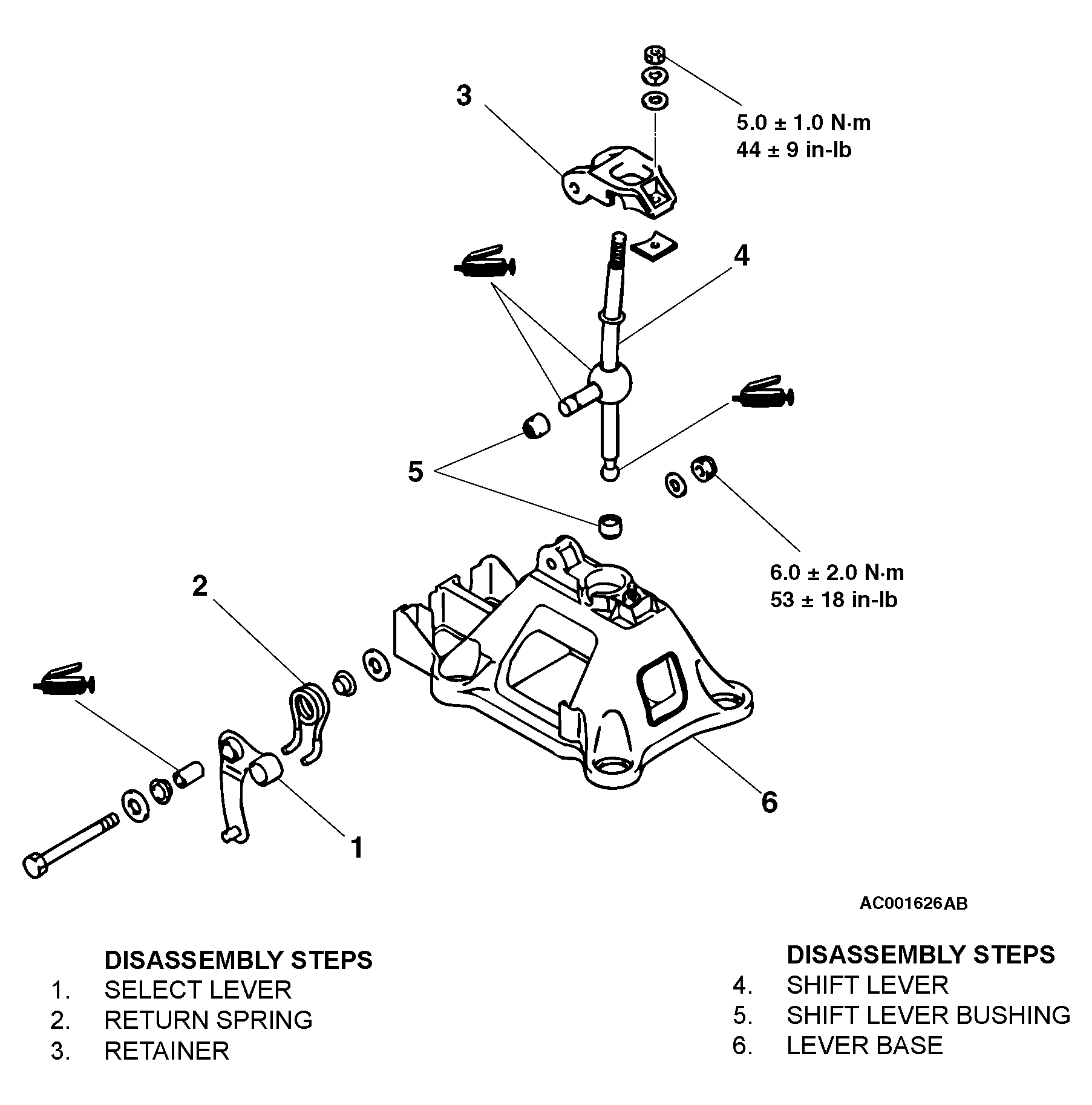

Fig 1: Disassembling\Assembling Shift Lever Assembly - W5M51
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
