Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

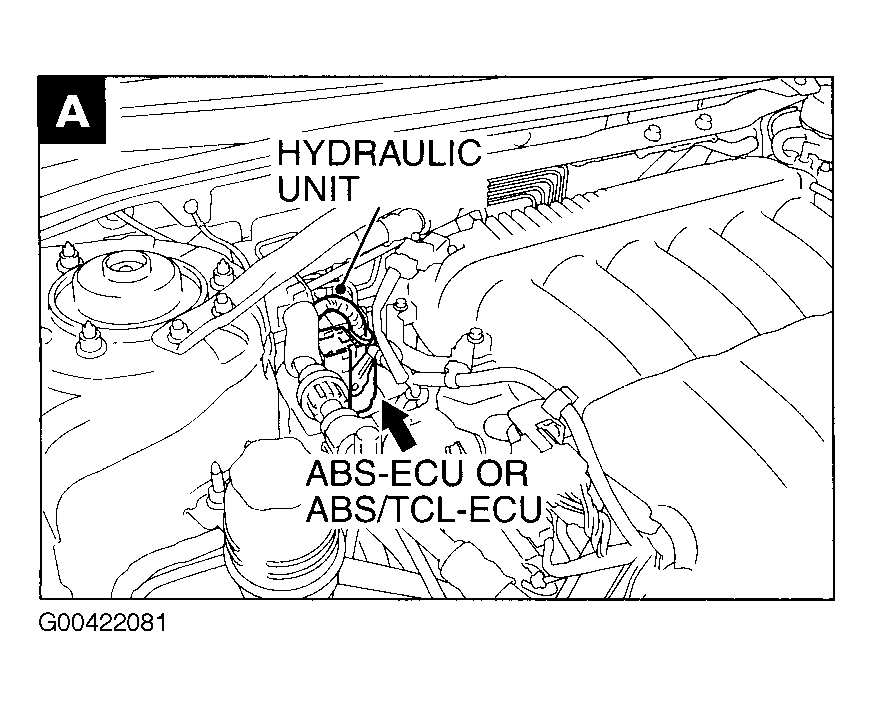

| ABS ECU (W/O Traction Control) | Right rear corner of engine compartment, on hydraulic unit. See Figure. |
| ABS/TCL-ECU | Right rear corner of engine compartment, on hydraulic unit. See Figure. |

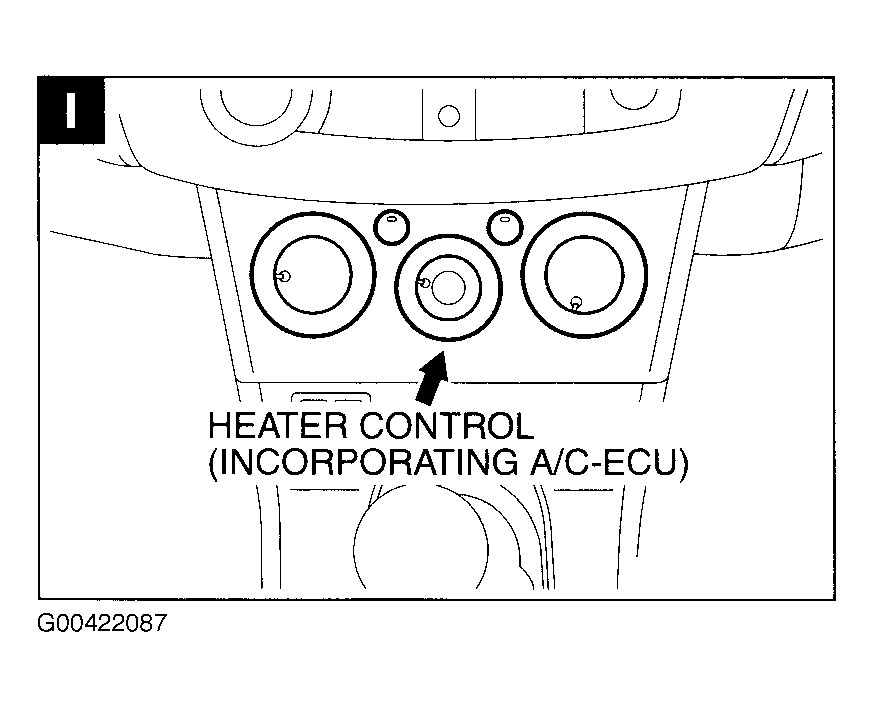

| A/C ECU | Integral to heater control unit. See Figure. |

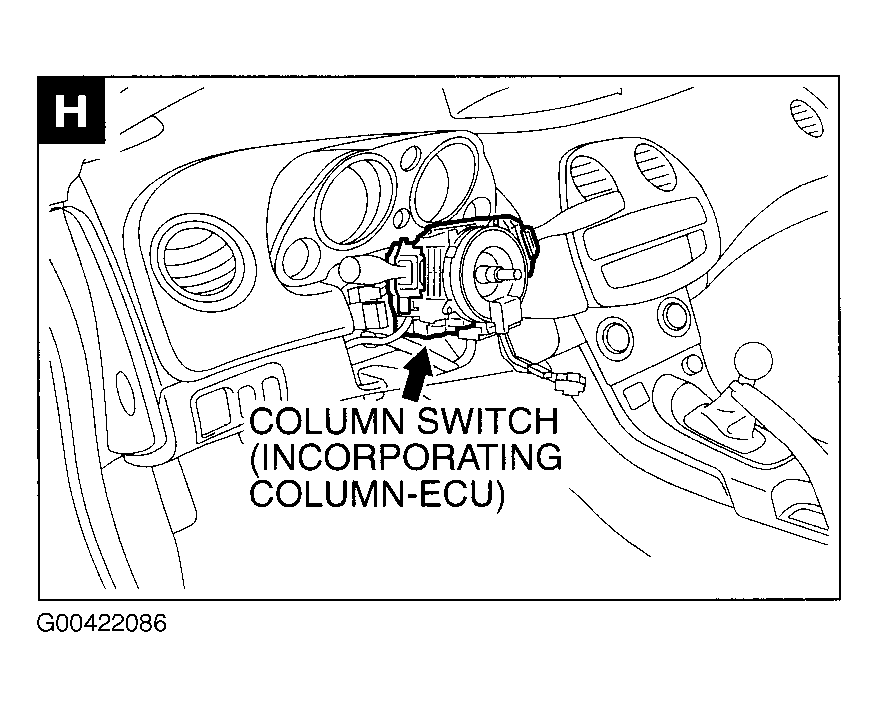

| Column ECU | On upper portion of steering column. See Figure. |

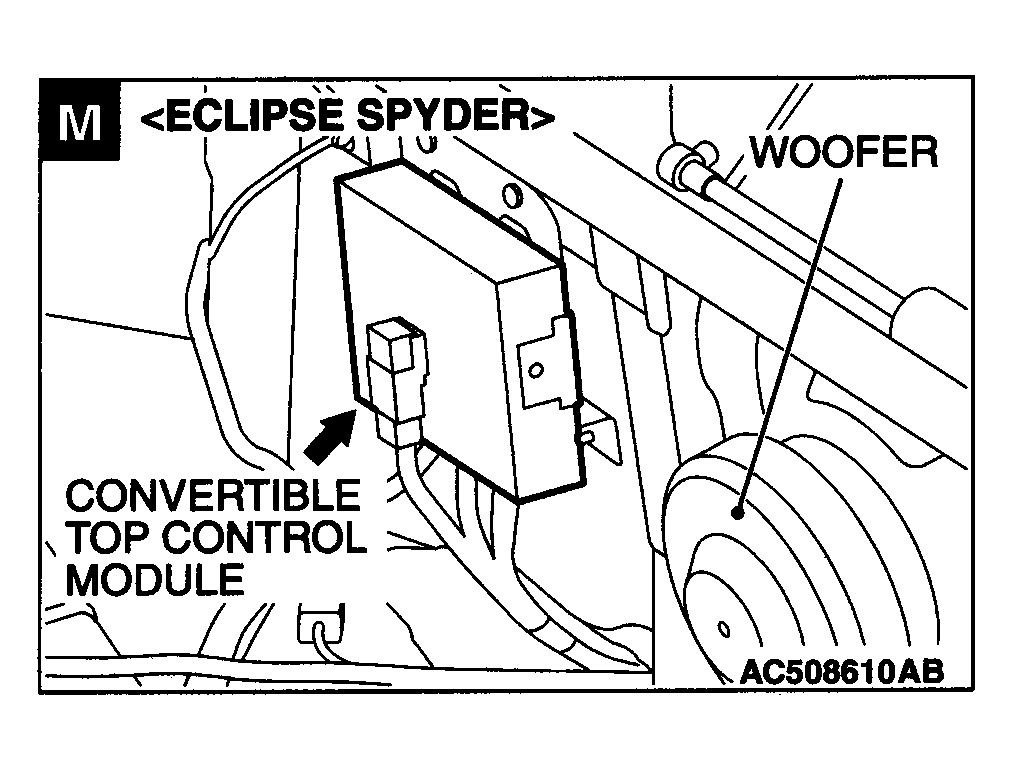

| Convertible Top Control Module | Left front of luggage compartment. See Figure. |

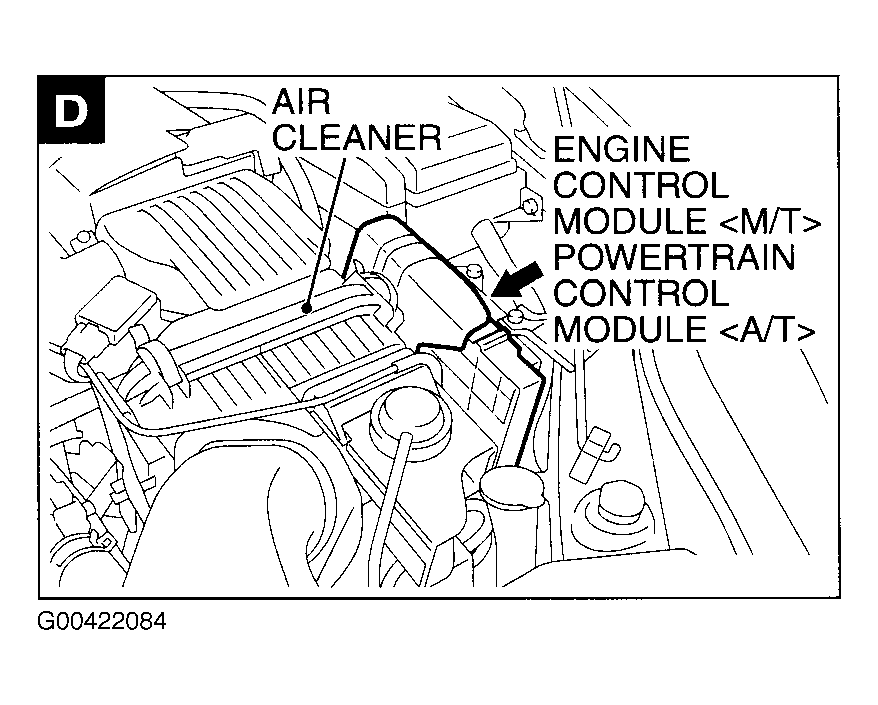

| Engine Control Module (M/T) | Left side of engine compartment, forward of relay box. See Figure. |

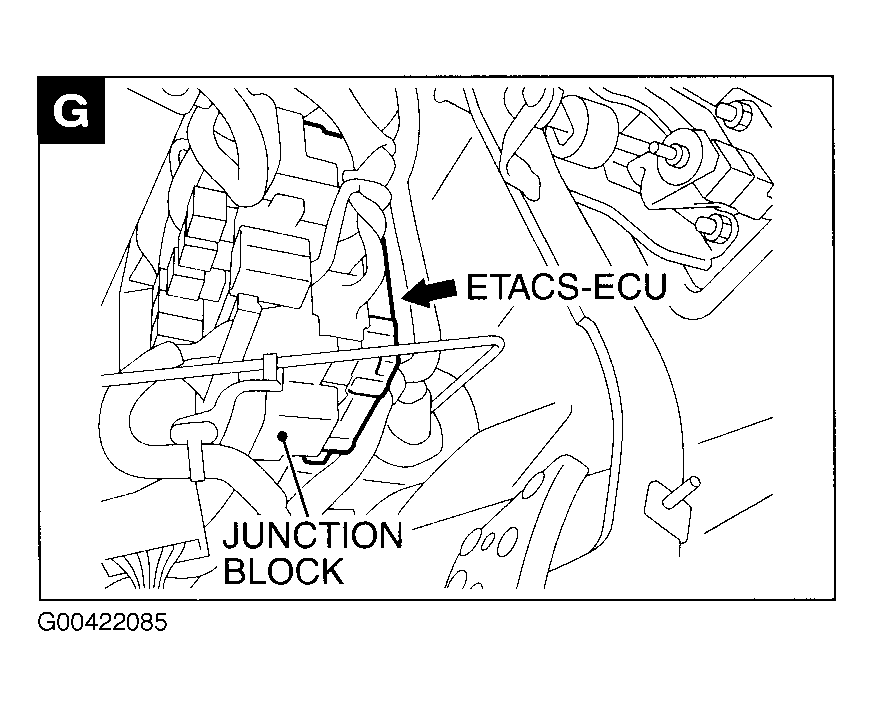

| ETACS ECU | Under left side of dash, on junction block. See Figure. |
| Fan Control Module | Attached to cooling fan shroud. See Figure. |

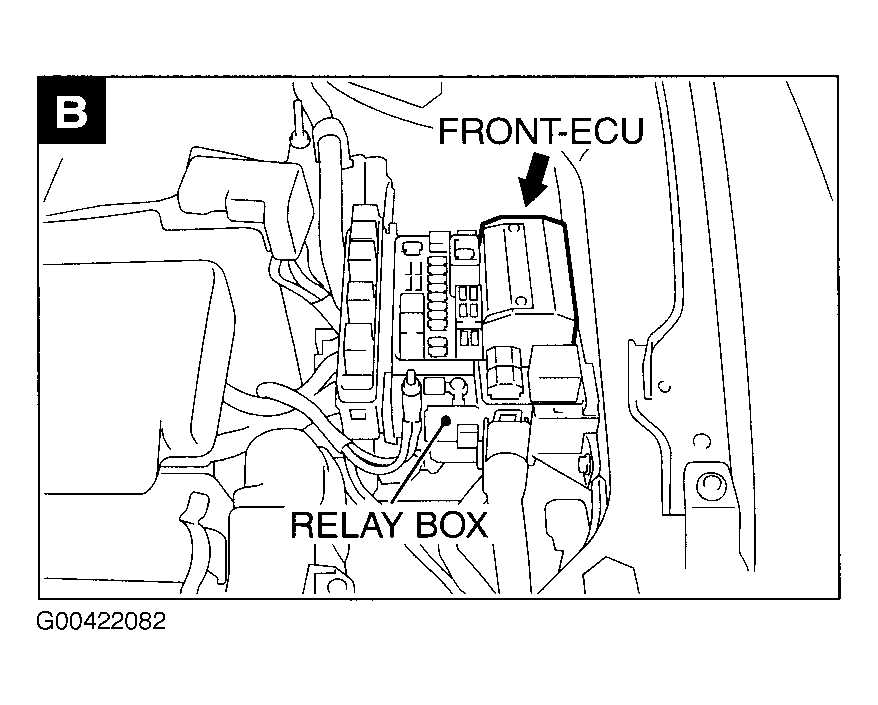

| Front ECU | In engine compartment relay box. See Figure. |

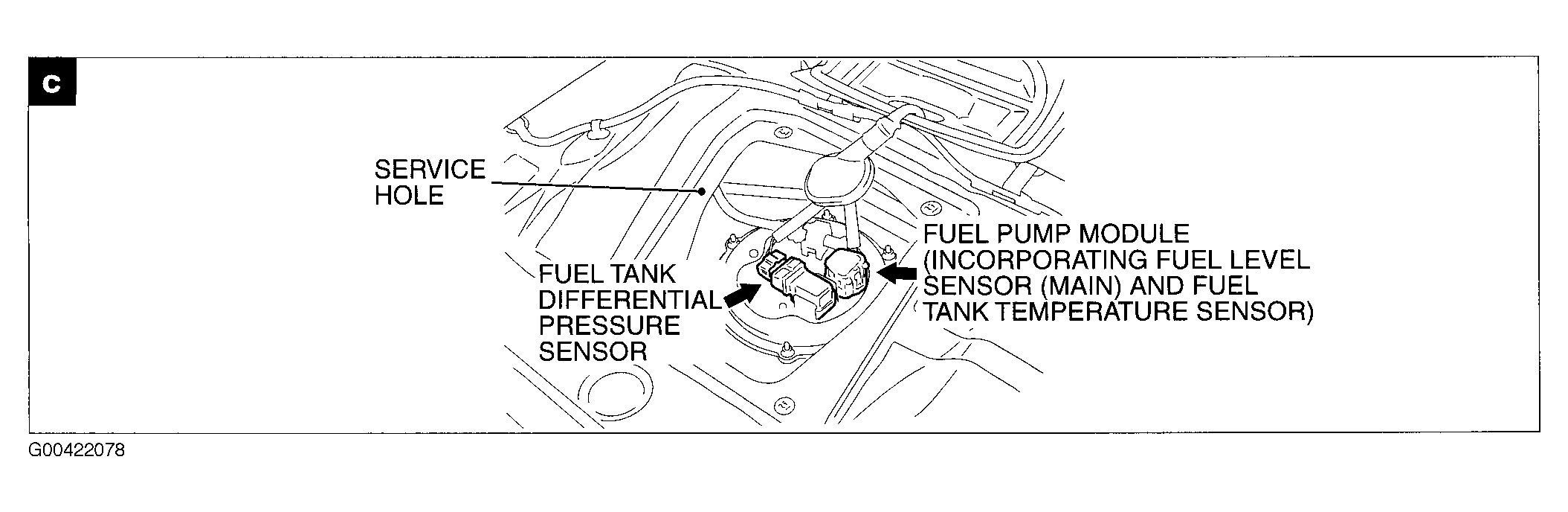

| Fuel Pump Module | Top of fuel tank. See Figure. |

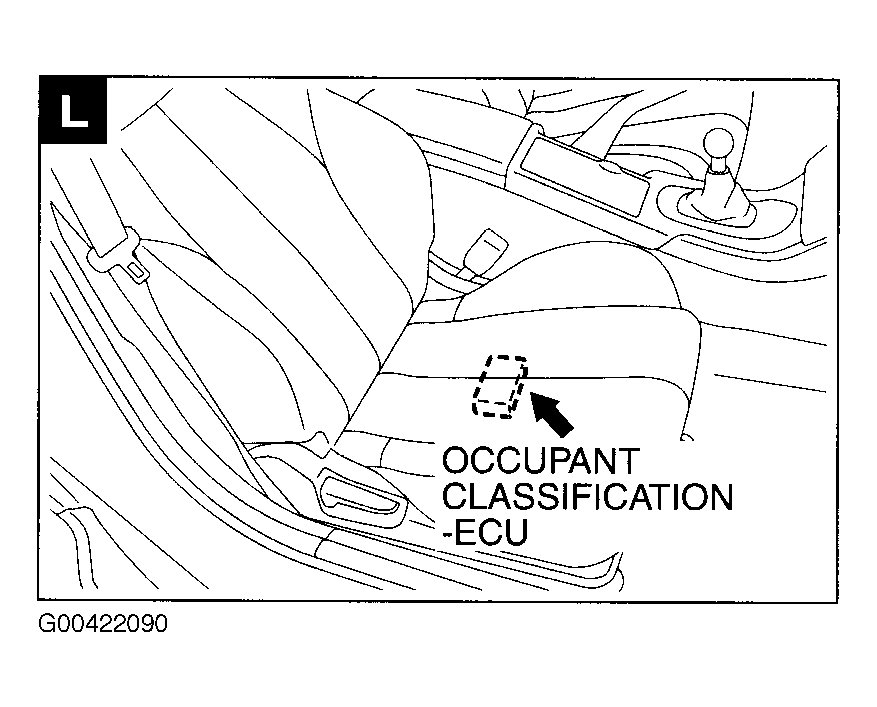

| Occupant Classification-ECU | Under front passenger's seat. See Figure. |
| Powertrain Control Module (A/T) | Left side of engine compartment, forward of relay box. See Figure. |

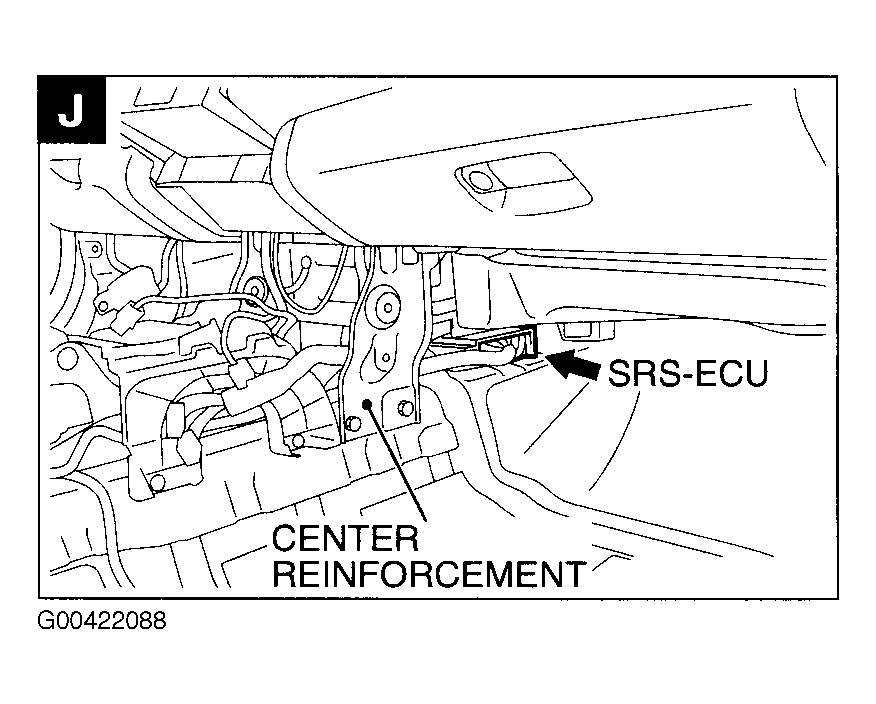

| SRS-ECU | Behind lower center of dash, near center reinforcement. See Figure. |

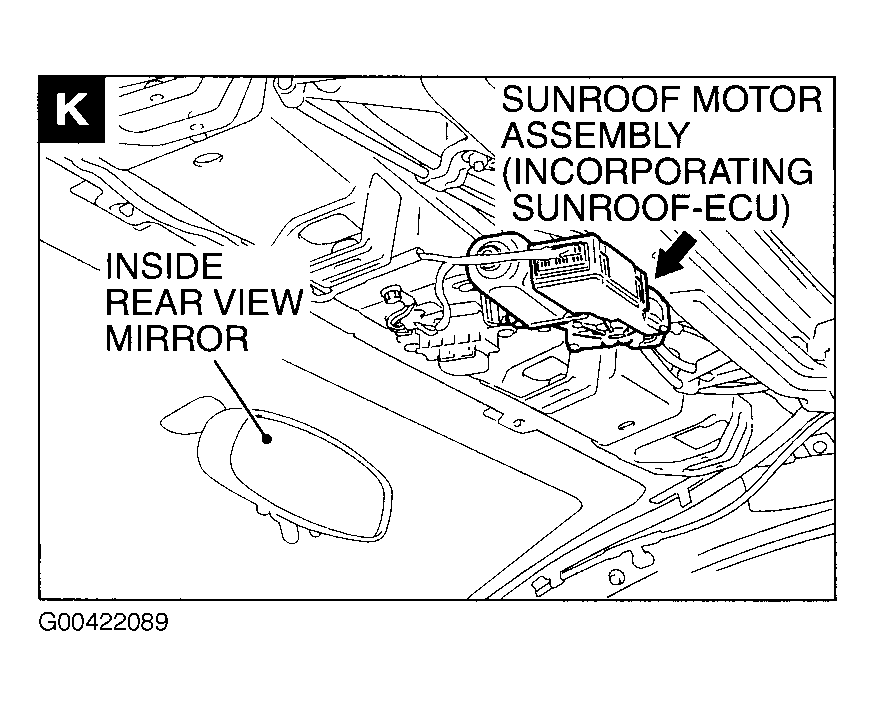

| Sunroof-ECU | Integral to sunroof motor. See Figure. |
