Inspection Procedure O-7: Column Switch: ETACS-Ecu Does Not Receive Any Signal From The Variable Intermittent Wiper Control Switch: Notes

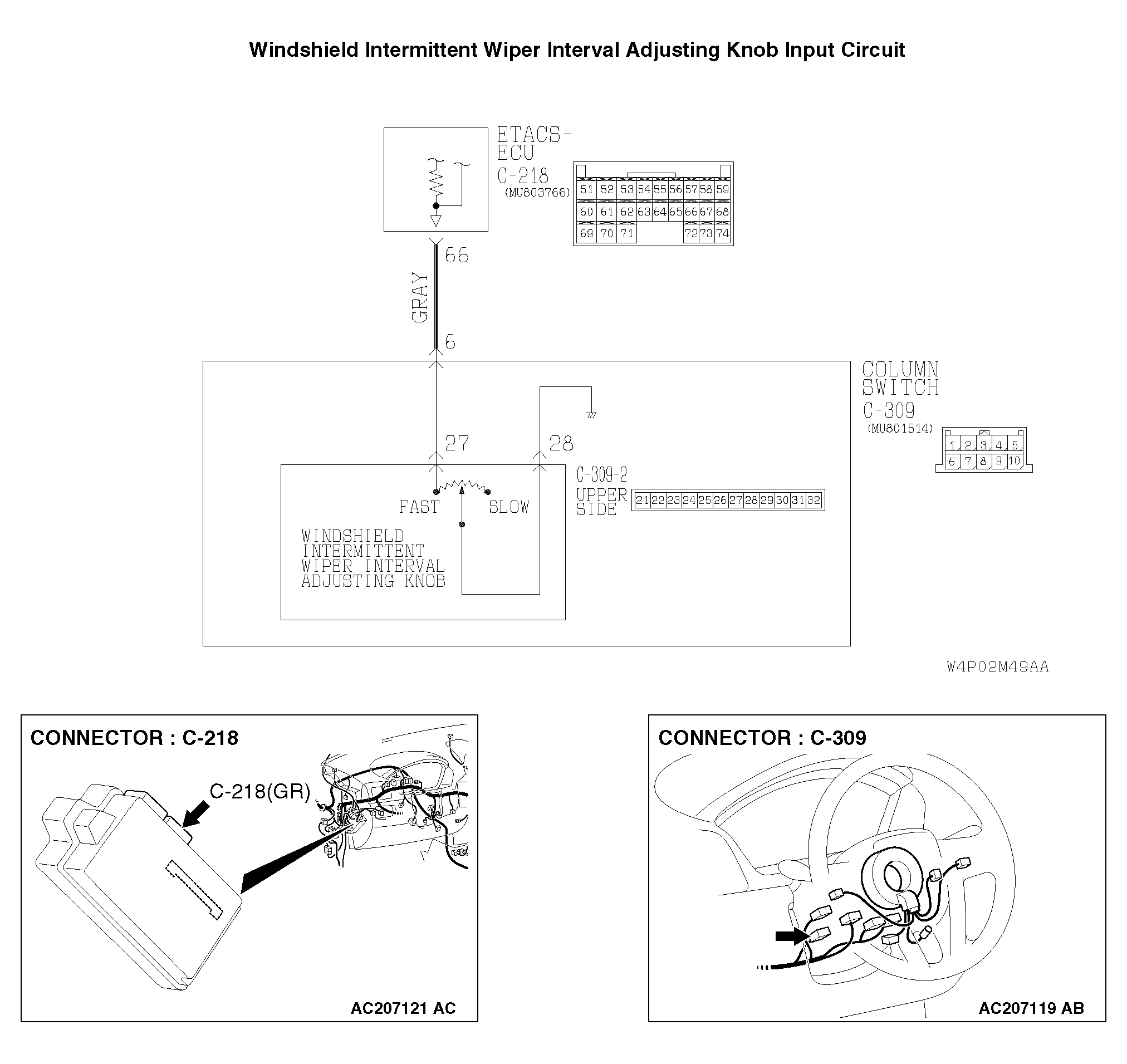

Fig 1: Windshield Intermittent Wiper Interval Adjustment Knob Input Circuit Diagram
G04290856Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
