Pressing The Transmitter Lock Switch

When the transmitter lock switch is pressed, the ETACS-ECU energizes its door lock relay to operate all the door lock actuators for 0.25 second, locking all doors.

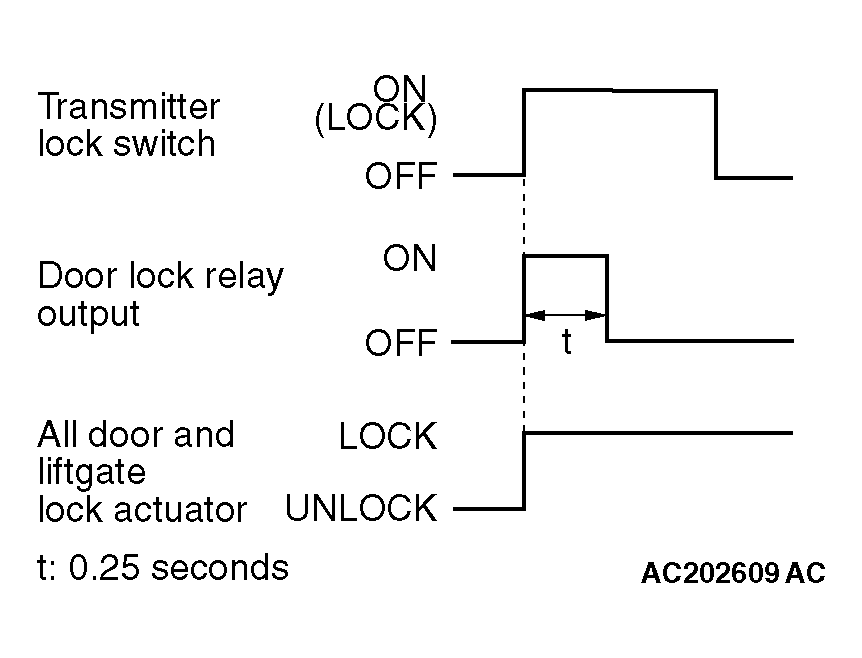

Fig 1: All Door Lock Function Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
