General Circuit Diagram For The Keyless Entry System

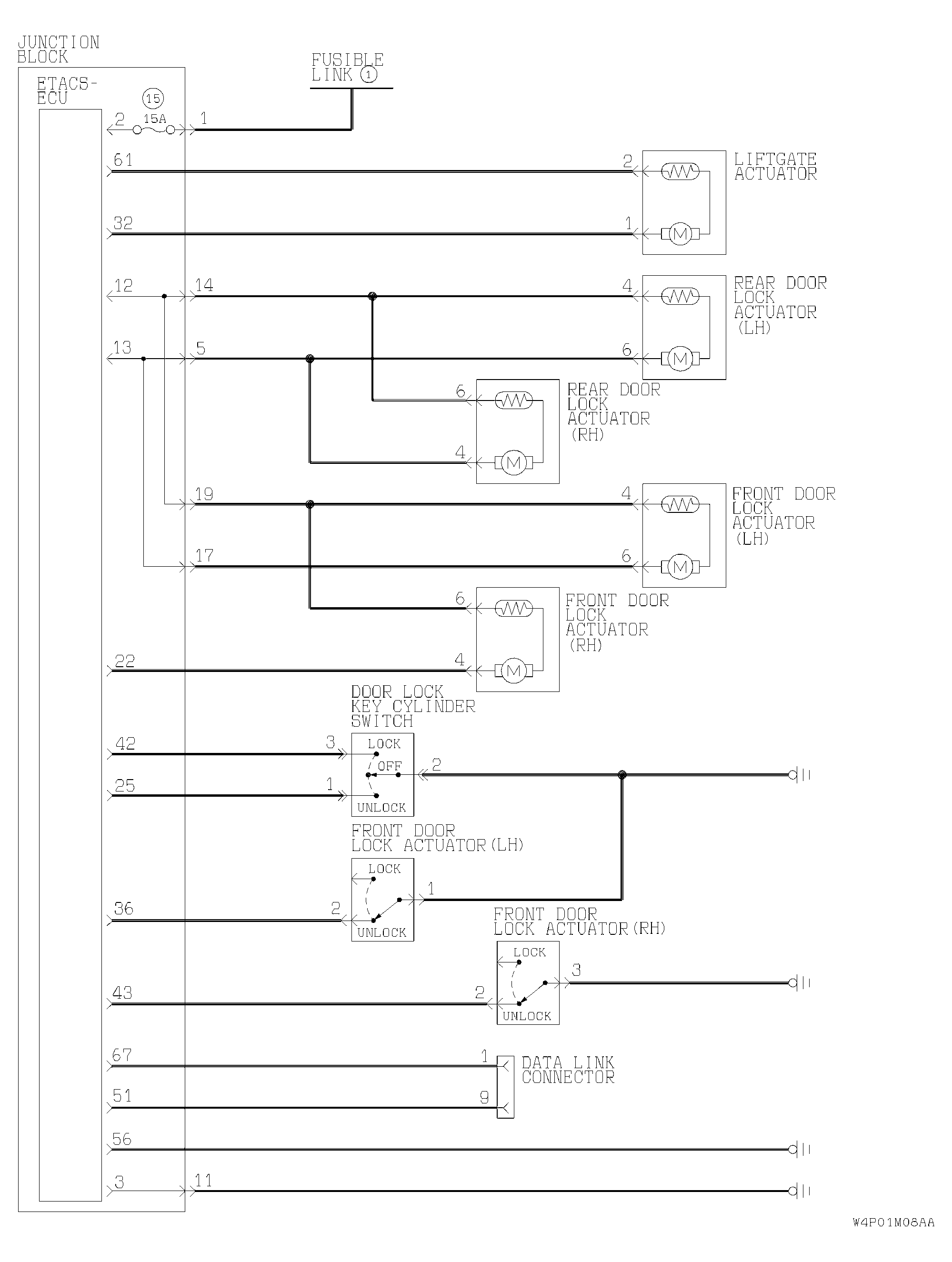

Fig 1: Keyless Entry System Circuit Diagram
G04290258Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
