Combination Meter Terminal Check

Measure the voltage between terminals using a voltmeter.

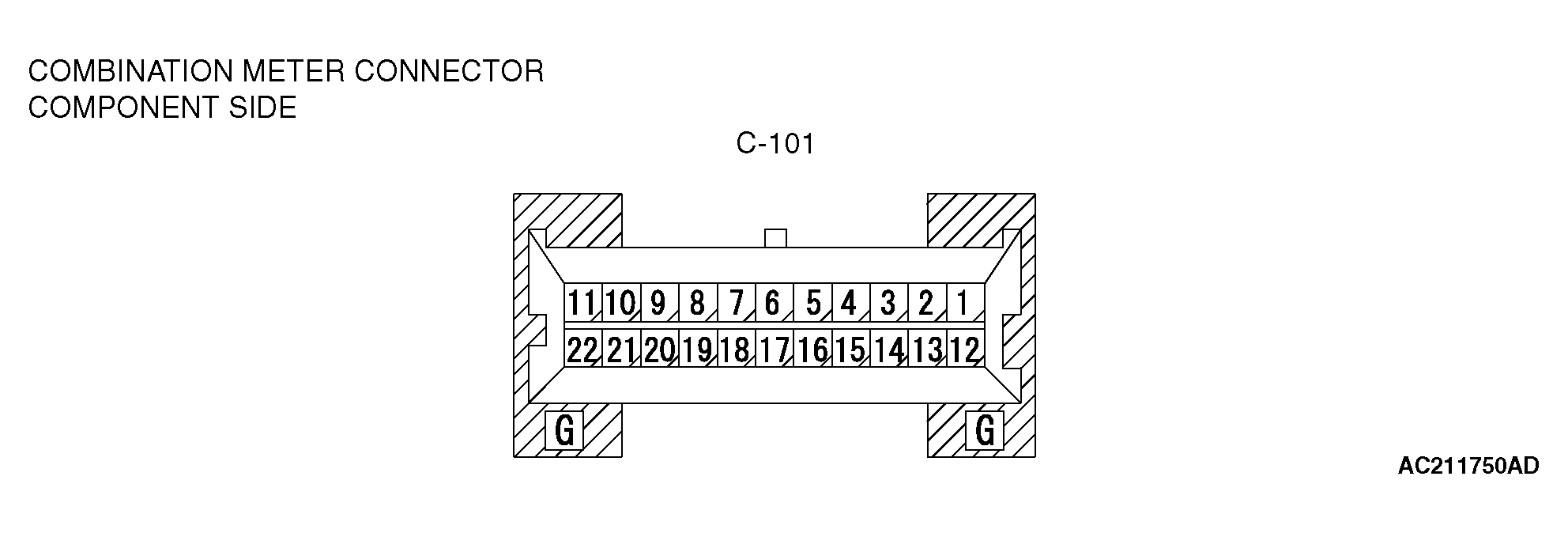

Fig 1: Identifying Combination Meter Connector C-101
G04289531Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The combination meter connector is fixed on the instrument panel directly, so you can not take measurement by backprobing.
COMBINATION METER TERMINAL CHECK

TERMINAL NO. CHECK ITEM CHECK CONDITION NORMAL CONDITION
1 Battery power supply Always Battery positive voltage
3 Gauge ground Always 0 V
5 Ground Always 0 V
7 Parking brake switch and brake fluid level switch
  • Ignition switch: ON or parking brake switch: ON
  • Ignition switch: ON or brake fluid level switch: ON
-
8 Seat belt switch Ignition switch: ON or driver's seat belt not fastened -
9 Engine oil pressure switch Ignition switch: ON or engine oil pressure switch: ON -
11 GENERATOR - -
12 Ignition switch (IG1) power supply Ignition switch: ON Battery positive voltage
13 Fuel gauge Always -
19 Immobilizer - -
21 Illumination (power supply) Lighting switch: ON Battery positive voltage
22 Illumination (ground) Always 0 V
CAUTION: Never take a measurement at terminals 14 and 15. If you do this, the CAN bus lines will be impaired.


Measure the voltage between terminals using a voltmeter.

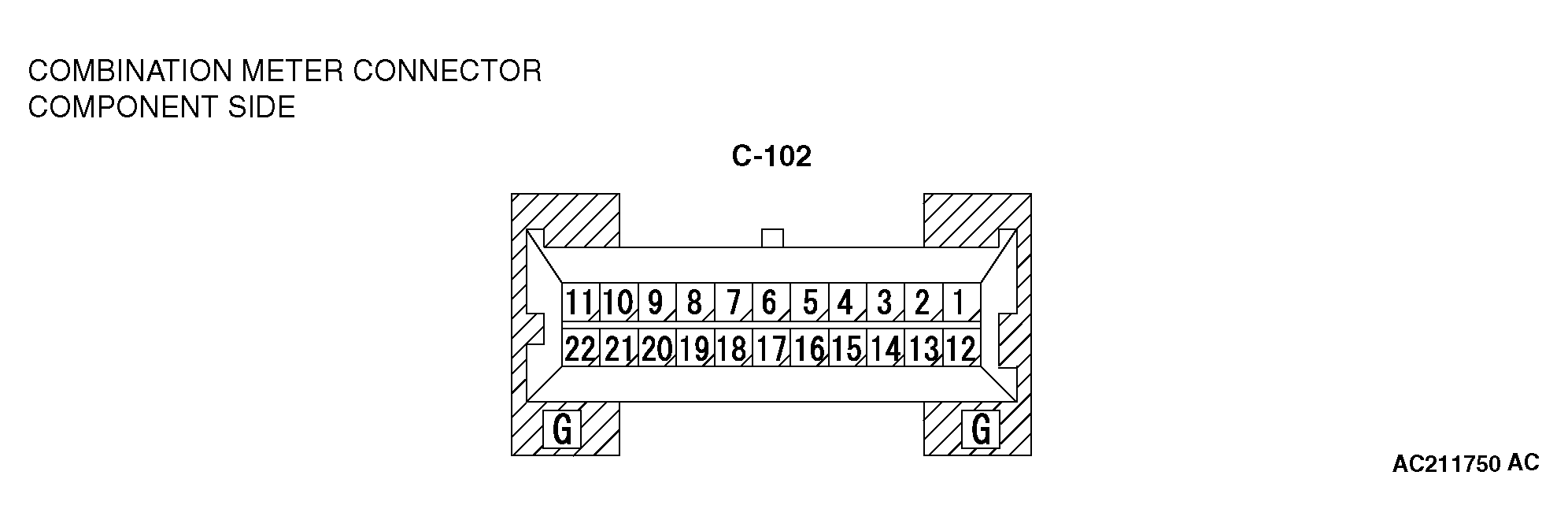

Fig 1: Identifying Combination Meter Connector C-102
G04289532Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The combination meter connector is fixed on the instrument panel directly, so you can not take measurement by backprobing.
COMBINATION METER TERMINAL CHECK

TERMINAL NO. CHECK ITEM CHECK CONDITION NORMAL CONDITION
1 Battery power supply Always Battery positive voltage
3 Gauge ground Always 0 V
5 Ground Always 0 V
7 Parking brake switch and brake fluid level switch
  • Ignition switch: ON or parking brake switch: ON
  • Ignition switch: ON or brake fluid level switch: ON
-
8 Seat belt switch Ignition switch: ON or driver's seat belt not fastened -
9 Engine oil pressure switch Ignition switch: ON or engine oil pressure switch: ON -
11 Generator - -
12 Ignition switch (IG1) power supply Ignition switch: ON Battery positive voltage
13 Fuel gauge Always -
19 Immobilizer - -
20 Tire pressure - -
21 Illumination (power supply) Lighting switch: ON Battery positive voltage
22 Illumination (ground) Always 0 V
CAUTION: Never take a measurement at terminals 14 and 15. If you do this, the CAN bus lines will be impaired.
