Fuel Level Sensor Check: Notes

  1. Remove the rear seats. (Refer to REAR SEAT ASSEMBLY ).
  2. Remove hole cover and remove the fuel pump module and fuel level sensor (sub) (Refer to FUEL TANK ).

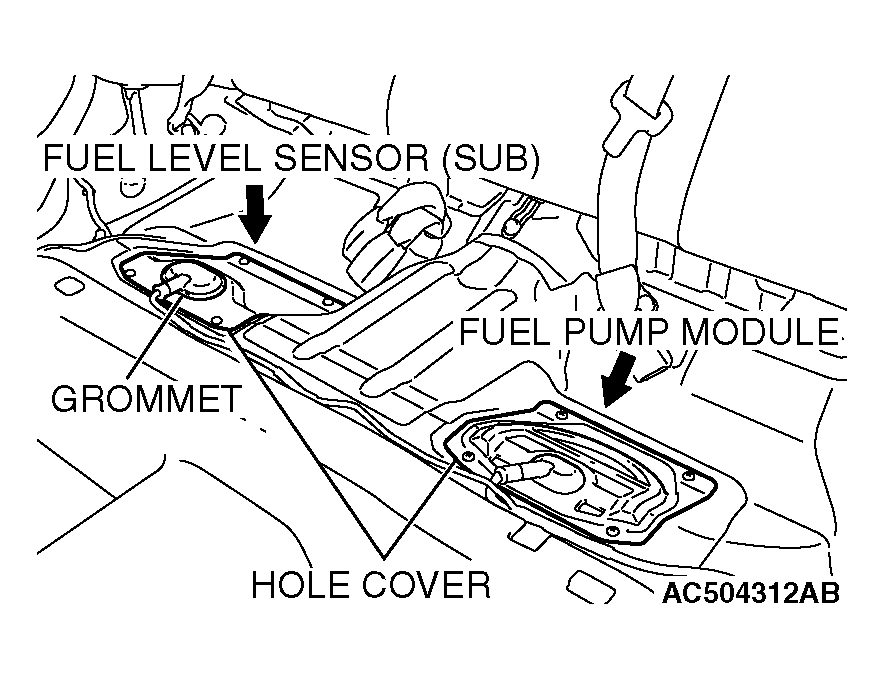

    Fig 1: Fuel Pump Module & Fuel Level Sensor
    G04289549Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
