DTC 010: Bus Off: Notes

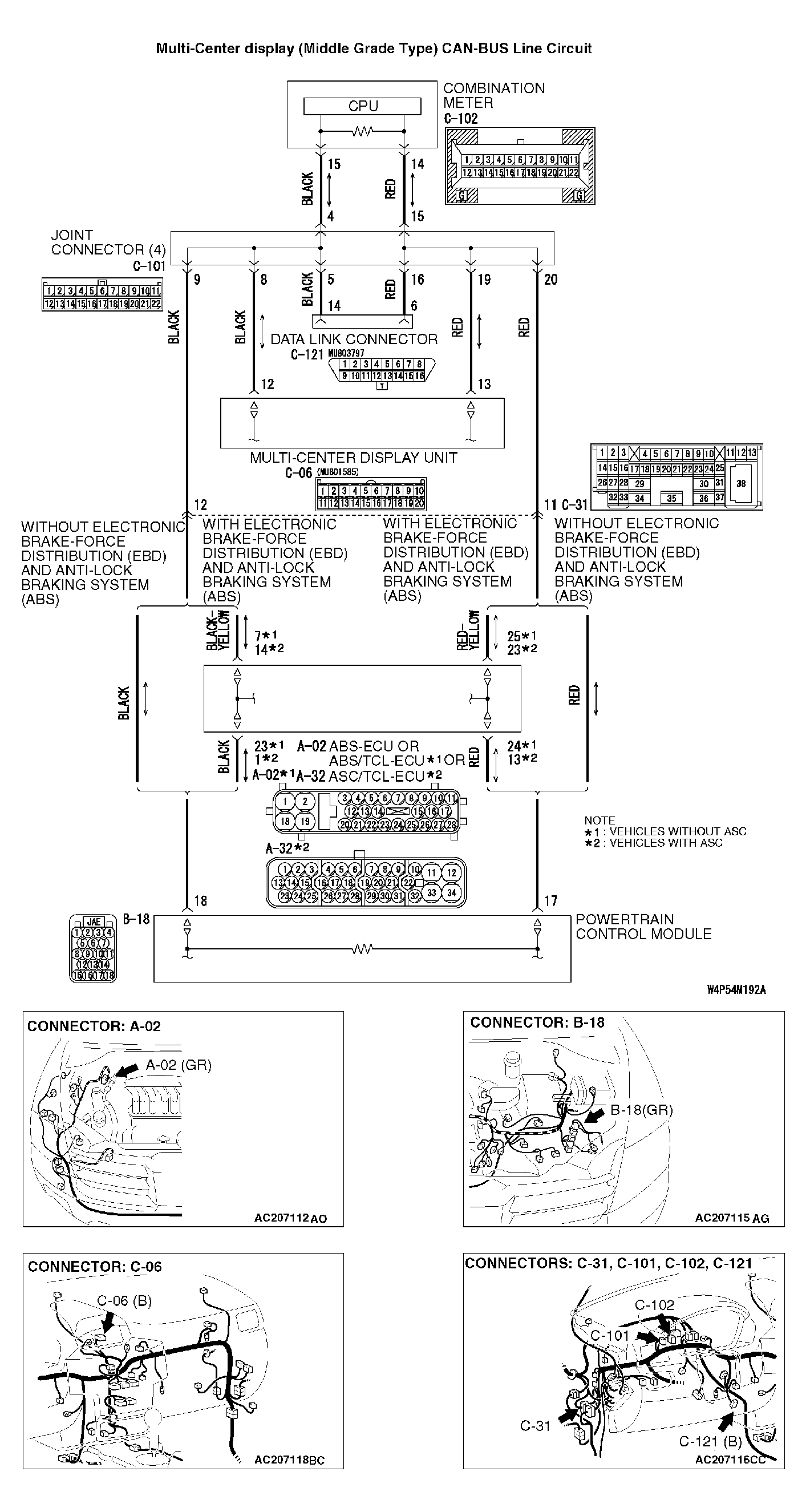

Fig 1: Multi-Center Display (Middle Grade Type) CAN-BUS Line Circuit Diagram
G04289777Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If DTC 010 is set in the multi-center display, always diagnose the CAN bus lines.
CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
