DTC 013: A/C-Ecu Time-Out: Notes

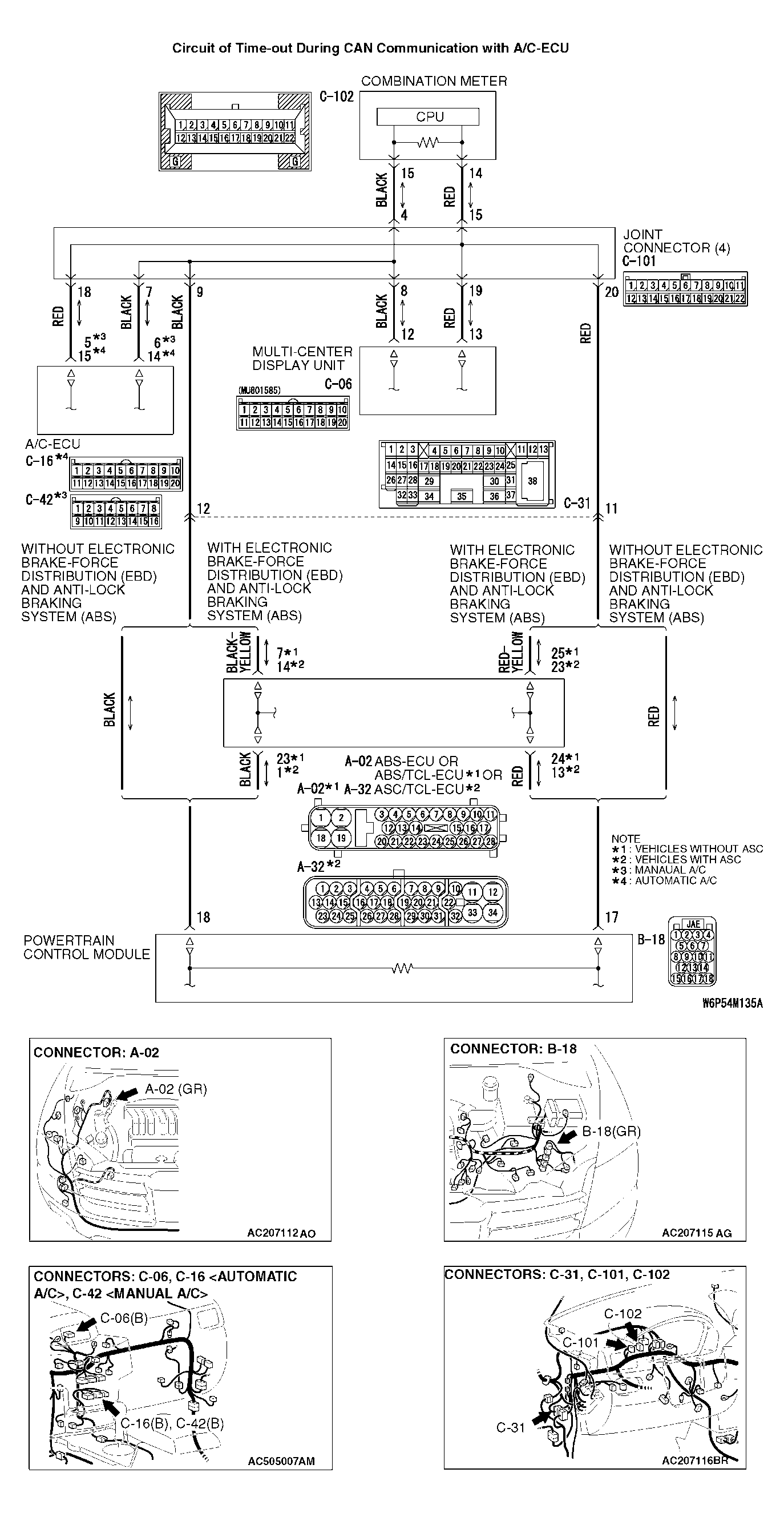

Fig 1: CAN Communication With A/C-ECU Circuit Diagram
G04289780Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If DTC 013 is set in the multi-center display, always diagnose the CAN bus lines.
CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
