DTC 019: ETACS-Ecu Time-Out: Notes

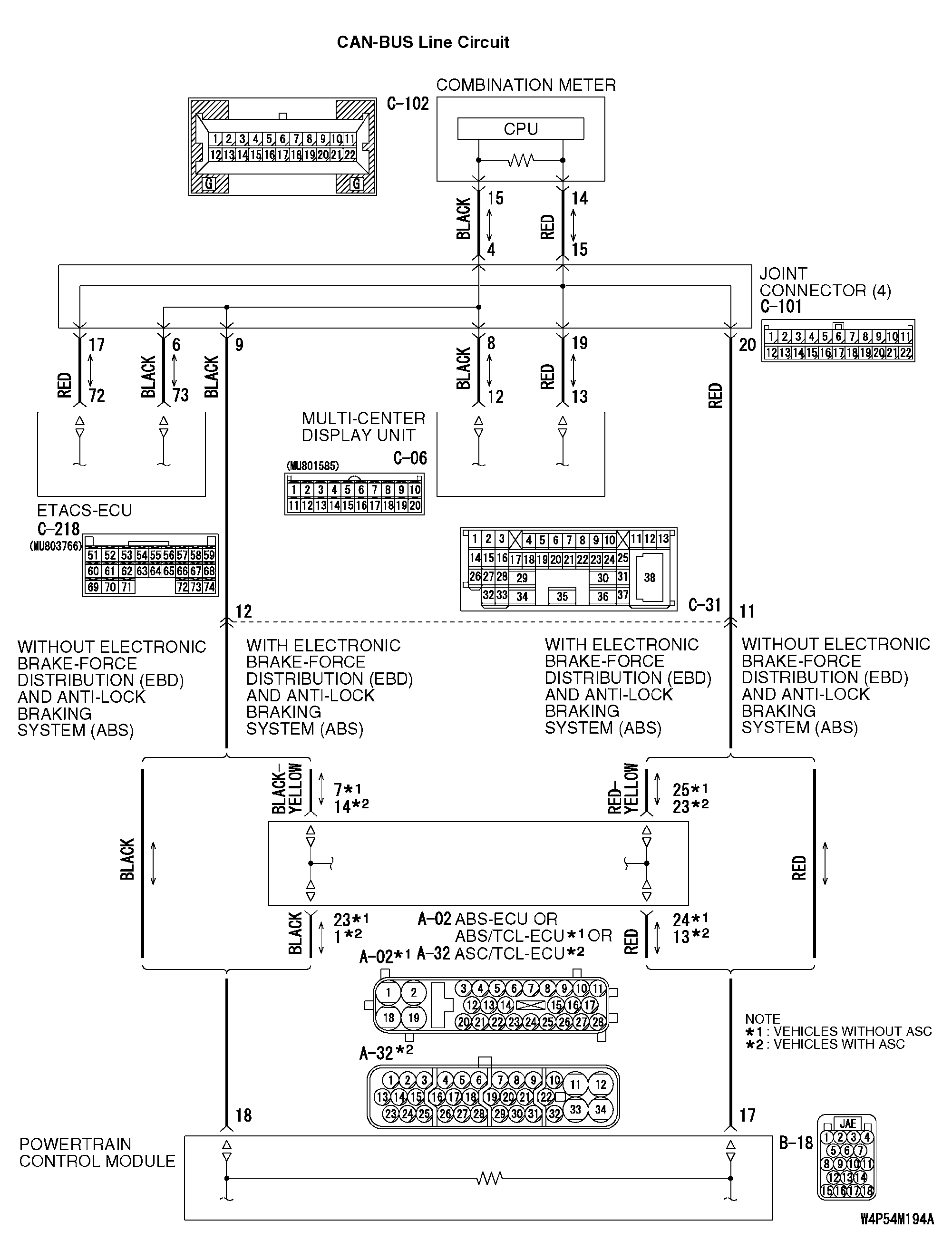

Fig 1: CAN-BUS Line Circuit Diagram
G04289783Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

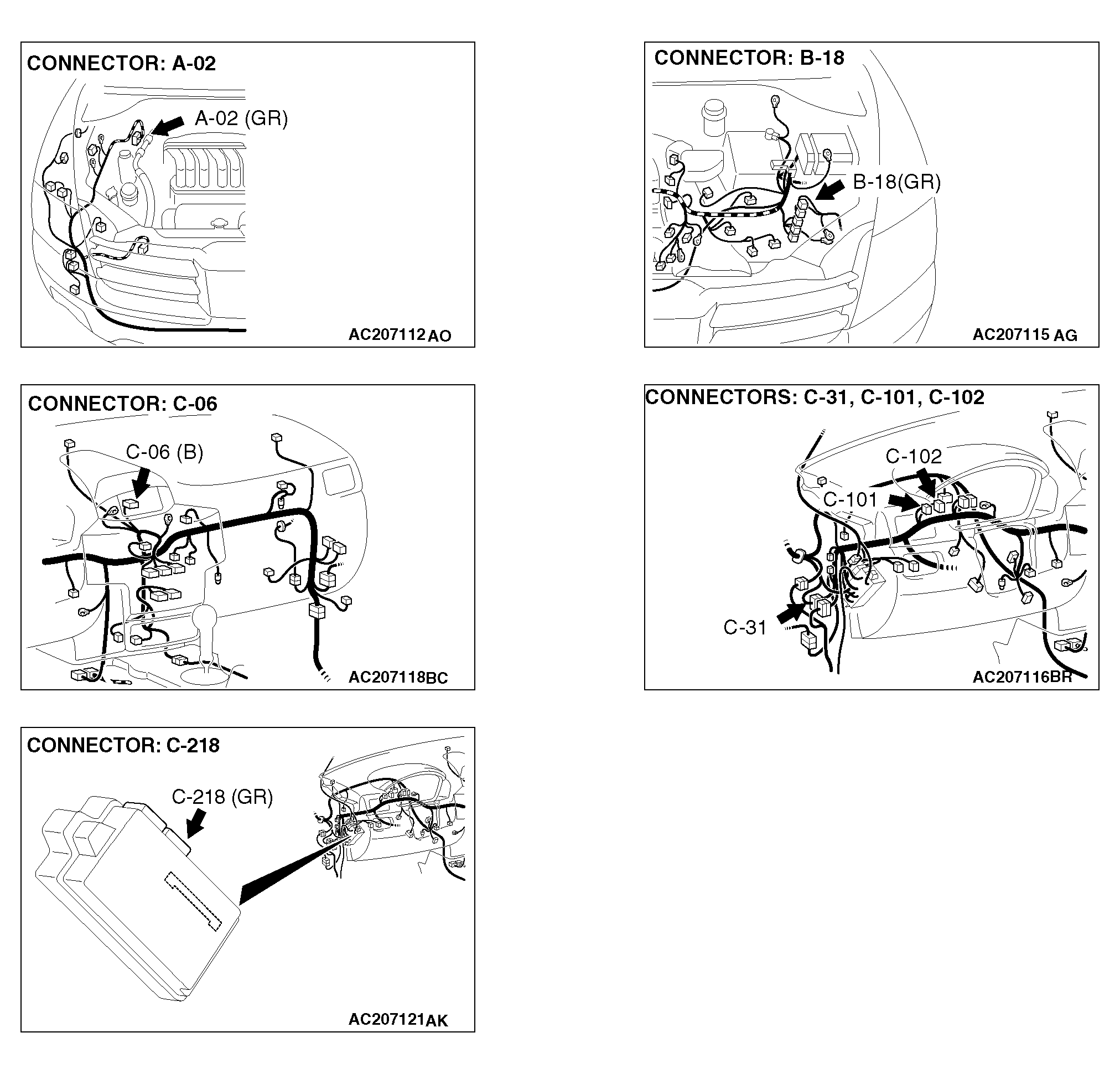

Fig 2: Identifying Connector Locations
G04289784Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If DTC 019 is set in the ETACS-ECU, diagnose the CAN main bus line.
CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
