<< A >> BJ Boot/DOJ Boot Installation

  1. Wrap the tape around the spline of the shaft, then install BJ boot and DOJ boot in order.
    CAUTION: Do not mix old and new or different types of grease, as a special grease is used in the joint.
  2. Fill the inside of BJ and BJ boot with specified grease.
    NOTE: The grease in the repair kit should be divided in half for use, respectively, at the joint and inside the boot.

    Specified grease: Repair kit grease

    Used amount: 75 +/- 10 g (2.6 +/- 0.3 oz)

    CAUTION: In order to fill the specified amount of air inside the BJ boot, keep the bent angle of the drive shaft to 0° during the operation.
  3. Tighten the boot band.

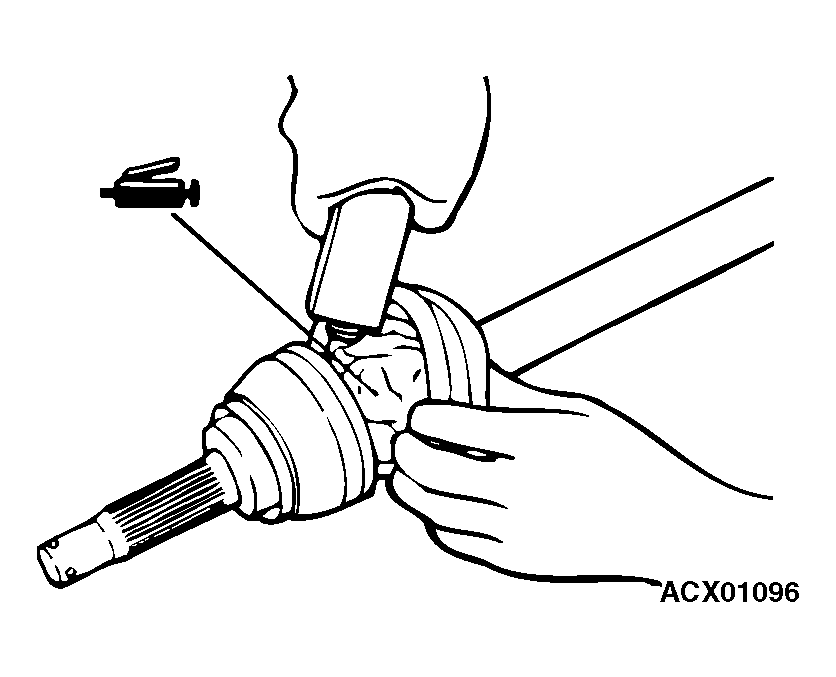

    Fig 1: Filling Grease Inside Of BJ & BJ Boot Band
    G04311804Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
