>> A << Spring Lower Pad Installation

Engage the three lugs of the spring lower pad into the holes on the front suspension strut as shown.

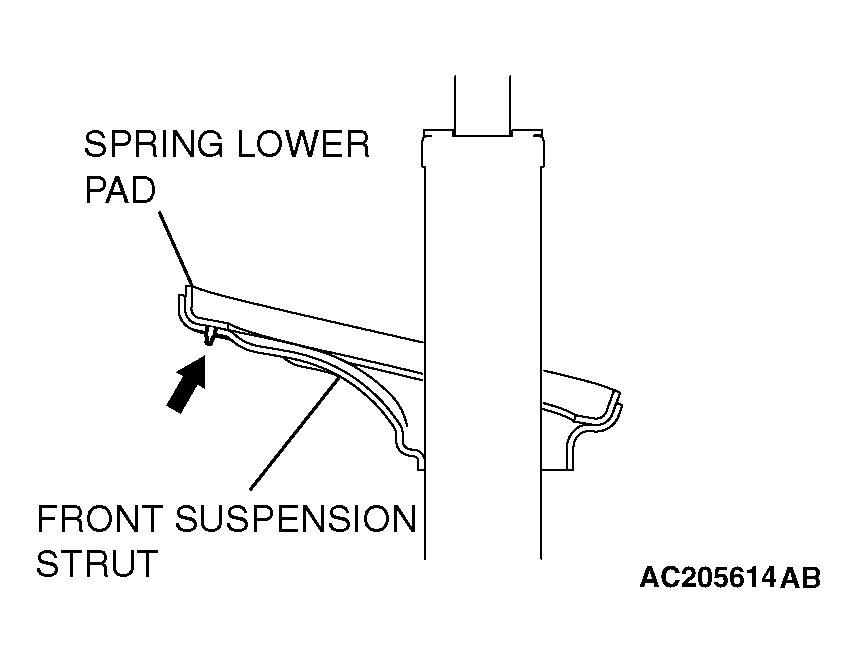

Fig 1: Locating Spring Lower Pad
G04312021Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
