DTC 27 (P0705): Transmission Range Switch System (Open Circuit): Notes

CAUTION: If DTC 27 (P0705) has been set, ASC related DTC C1397 is also set. After DTC 27 (P0705) has been diagnosed, don't forget to erase DTC C1397.

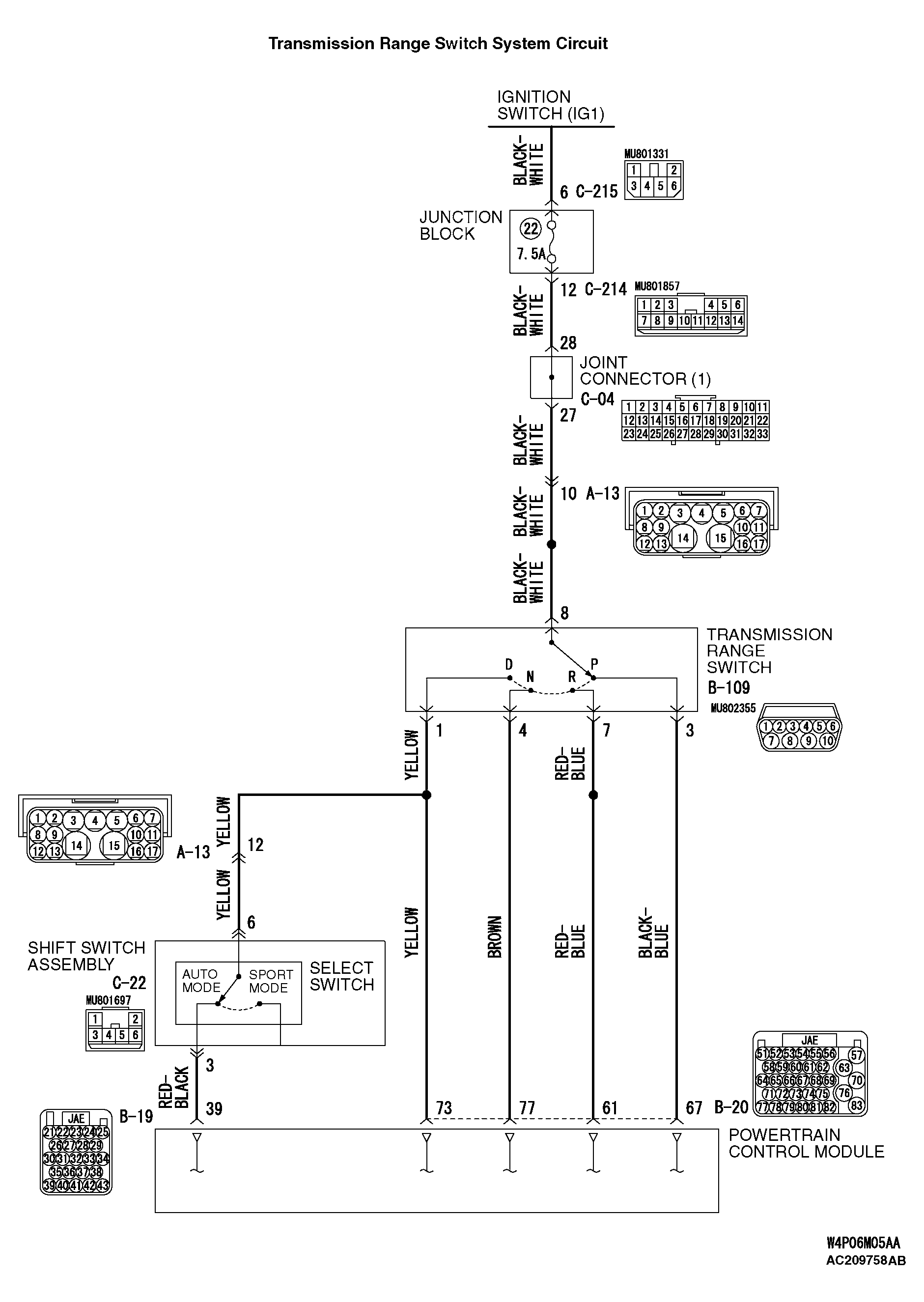

Fig 1: Transmission Range Switch System Circuit Diagram
G04310994Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

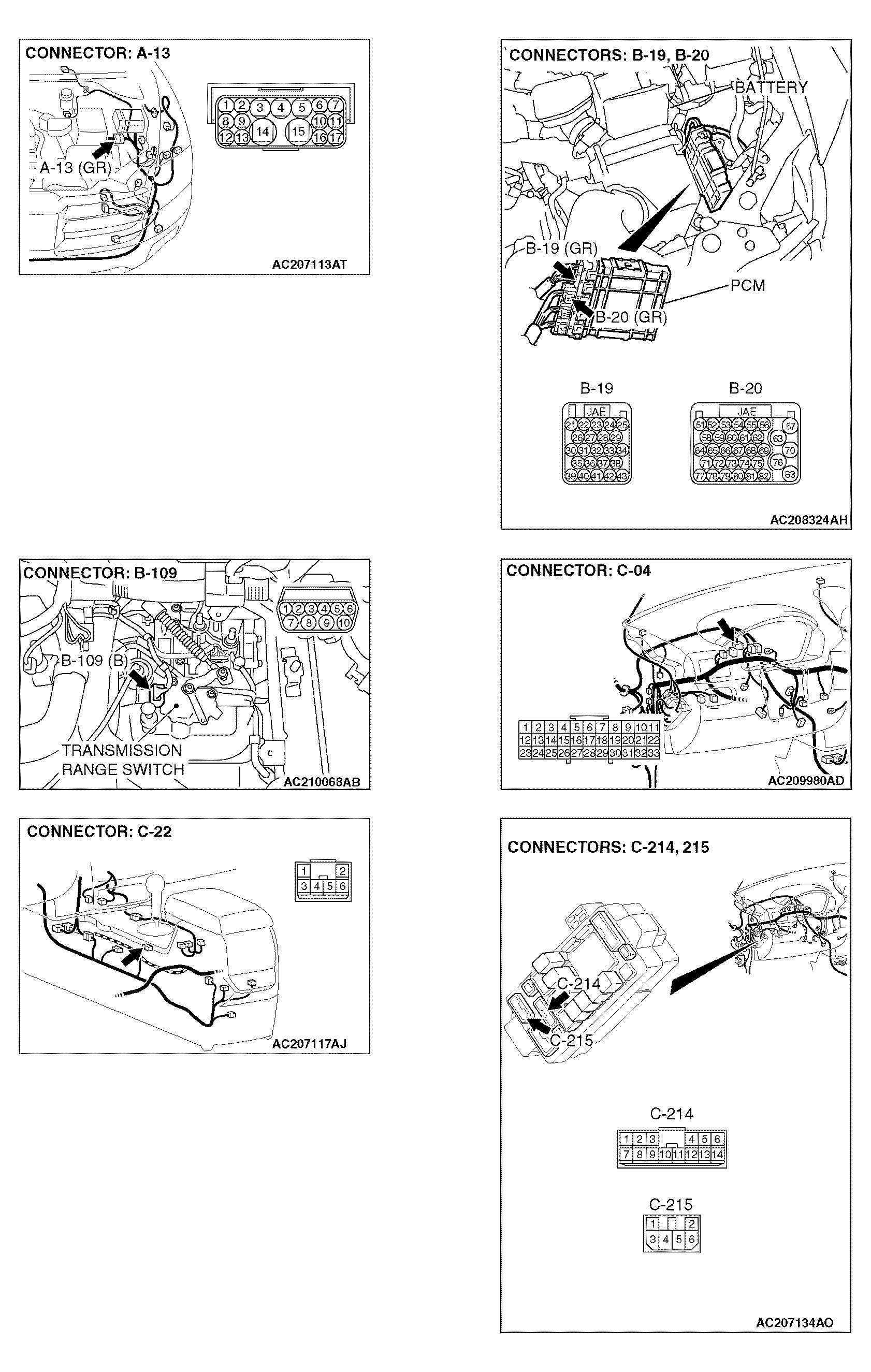

Fig 2: Transmission Range Switch System Circuit Diagram Connector Locations
G04310995Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
