Keyless Entry Horn ANSWERBACK Function

If the keyless entry transmitter is used to send a lock signal to the ETACS-ECU, the first signal locks all doors while the second signal sounds the horn once.

NOTE: : The horn answerback function can be customized by using the keyless entry transmitter (Refer to KEYLESS ENTRY SYSTEM ) or by using the multi center display (middle grade type). Refer to ON-VEHICLE SERVICE  .

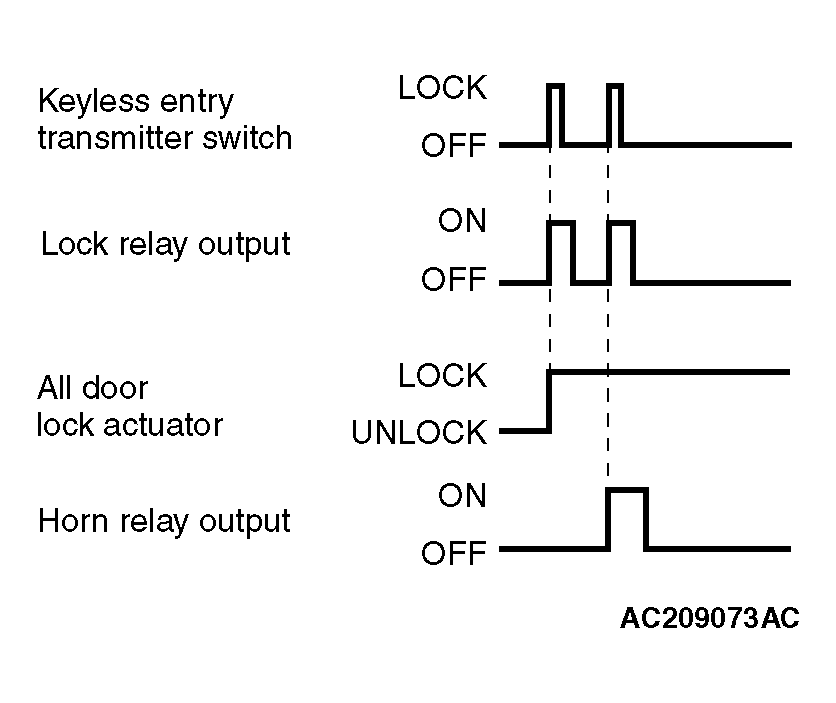

Fig 1: Keyless Entry Horn Answerback Function - Blinking Pattern
G04257408Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
