INSPECTION PROCEDURE 15: Shift Switch Assembly System: Notes

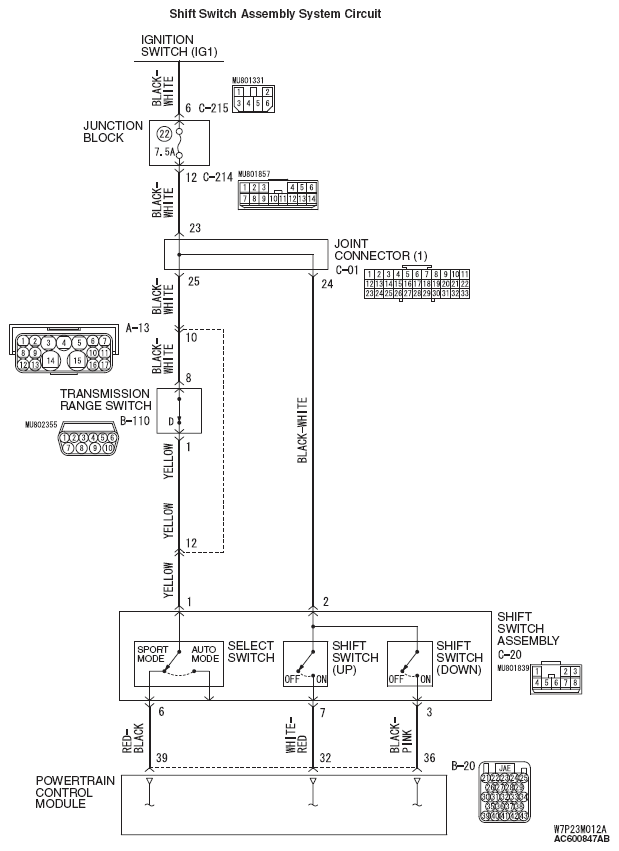

Fig 1: Shift Switch Assembly System Circuit Diagram (1 Of 2)
G05102535Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
