Circuit Protection Devices

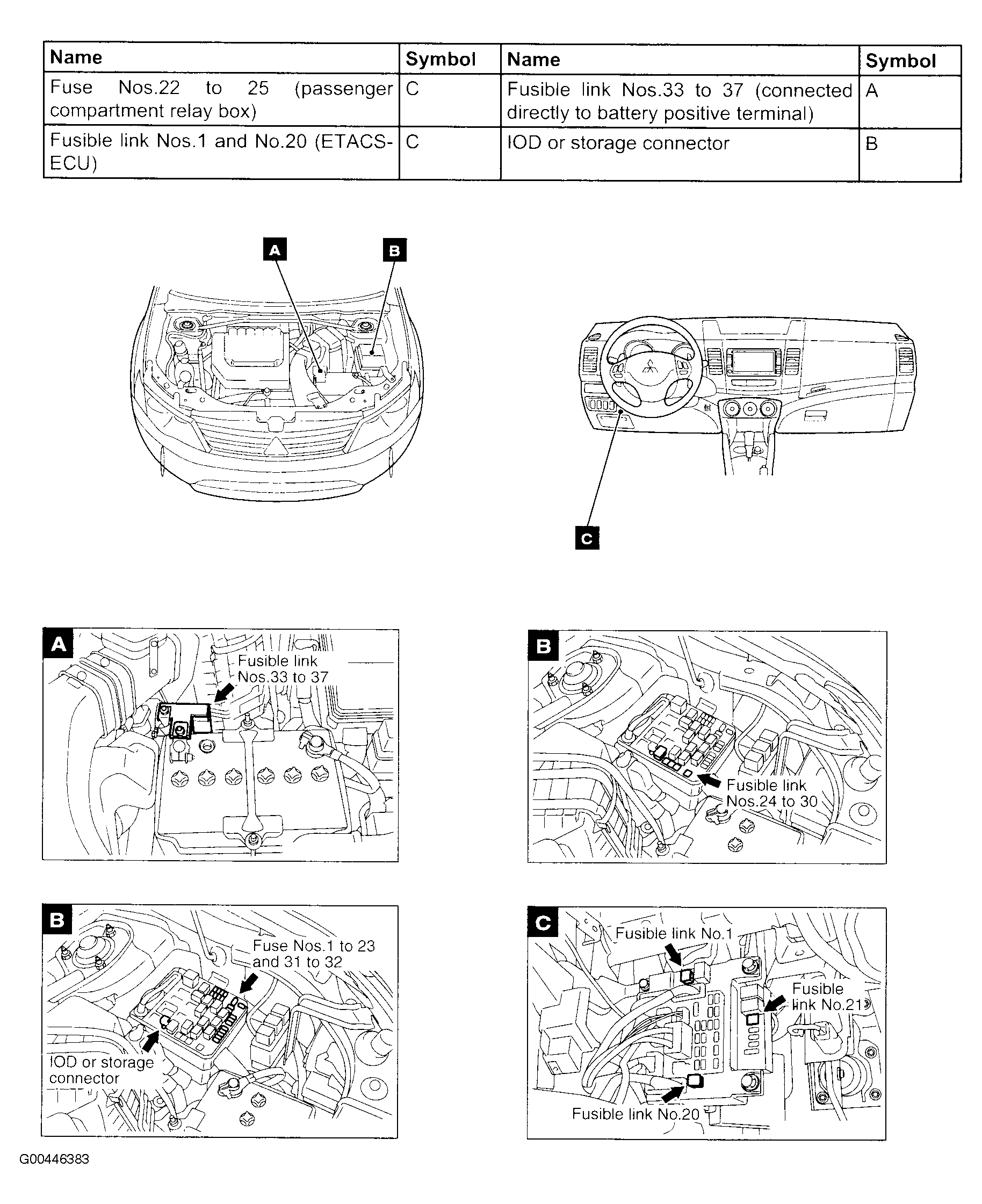

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Fusible Links No. 1, 20 & 21 | On ETACS-ECU. See Figure. |
| Fusible Links No. 24 - 30 | In engine room relay box. See Figure. |
| Fusible Links No. 33 - 37 | On positive terminal of battery. See Figure. |
| Relay Box (Engine Room) | On left side of engine compartment. |
