Ignition Switch "Lock (Off)" Position-Linked Door Unlocking Function <M/T, TC-SST>

• When the ignition switch is turned to the "LOCK (OFF)" position, all the doors will be unlocked automatically, improving passengers' convenience for getting out. Using a customization function, the ignition switch "LOCK (OFF)" position-linked door unlocking function can be changed (Refer to CUSTOMIZATION FUNCTION  ).

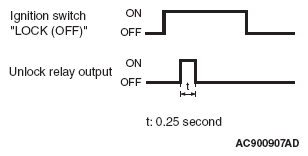

  Fig 1: Ignition Switch Lock (OFF) Position - Blinking Pattern

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

When the ignition switch is turned to the "LOCK (OFF)" position, ETACS-ECU turns the unlock relay output ON for 0.25 second to unlock all the doors.
