Selector "P" Position-Linked Door Unlocking Function <TC-SST>

WARNING: This page is about a different variant/trim than selected.

When the selector lever is shifted to the "P" (parking) position with the ignition switch turned ON, all the doors will be unlocked automatically, improving passengers' convenience for getting out. Using a customization feature, the selector "P" position-linked door unlocking function can be switched (Refer to CUSTOMIZATION FUNCTION ).

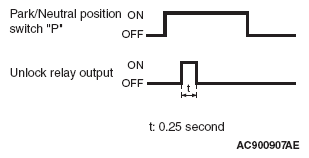

Fig 1: Park/Neutral Position Switch - Blinking Pattern
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

When the selector lever is shifted to the P position with the ignition switch turned ON, the lever position sensor "P" turns ON, ETACS-ECU turns the unlock relay output ON for 0.25 second to unlock all the doors.
