Scan Tool (Multi Use Tester (M.U.T.-III) Sub Assembly)

CAUTION: Turn the ignition switch to the "LOCK" (OFF) position before disconnecting or connecting the scan tool.

NOTE: M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.

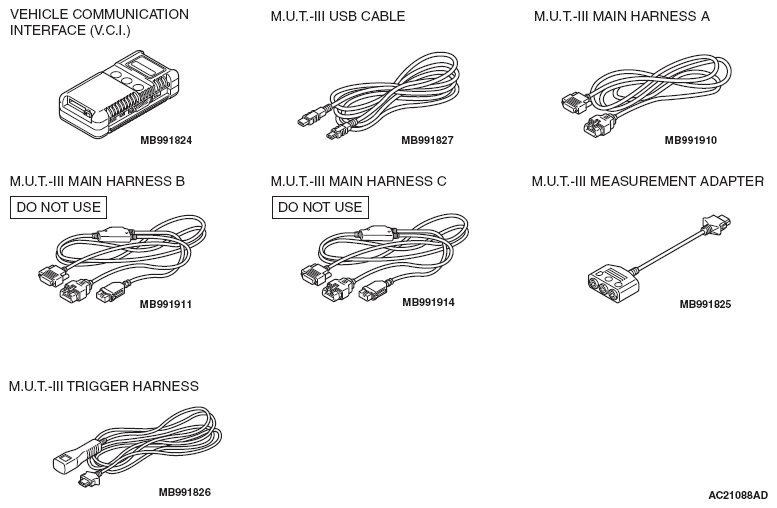

Fig 1: Scan Tool Table (Multi Use Tester (M.U.T.-III) Sub Assembly)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
