>> A << Brake Hose Installation

WARNING: This page is about a different variant/trim than selected.

Pass the brake hose through the hole in the body-side bracket.
Install the brake hose to the brake caliper.
Install the brake hose at the two fixing points.
Twist the brake hose toward the lesser torsion between the brake hose and body-side bracket as shown in the illustration, and fix it to the body-side bracket with a clip.

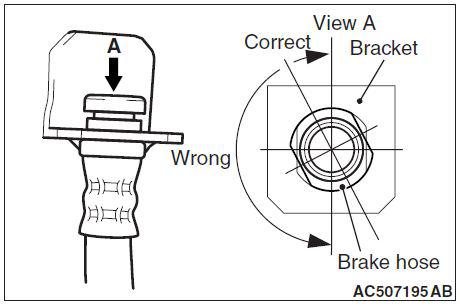

Fig 1: Twisting Brake Hose Toward Lesser Torsion Between Brake Hose And Body-Side Bracket
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
