Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

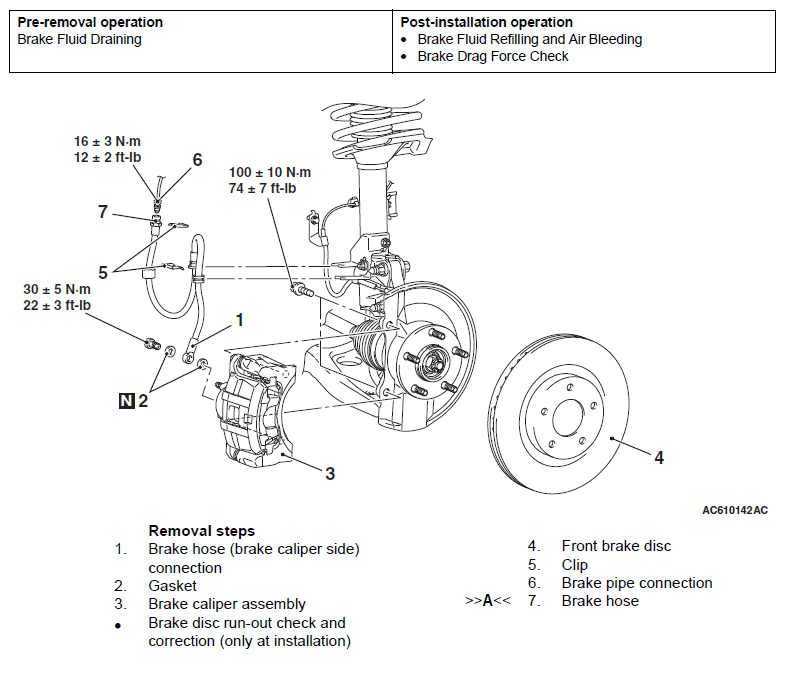

Fig 1: Removing/Installing Front Disc Brake Assembly Mounting Bolts With Torque Specifications
G09627023Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
