Lubrication Points
WARNING:
This page is about a different variant/trim than selected.

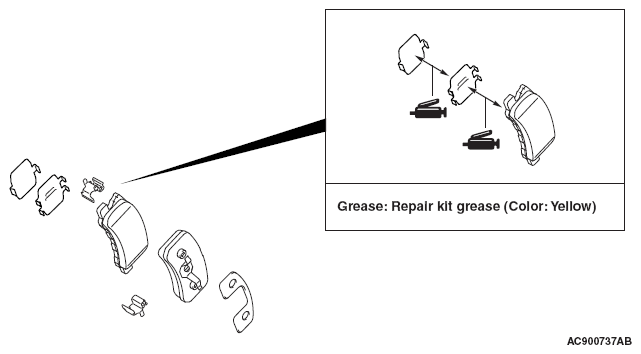

Fig 1: Identifying Rear Disc Brake Assembly Grease Applying Area (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

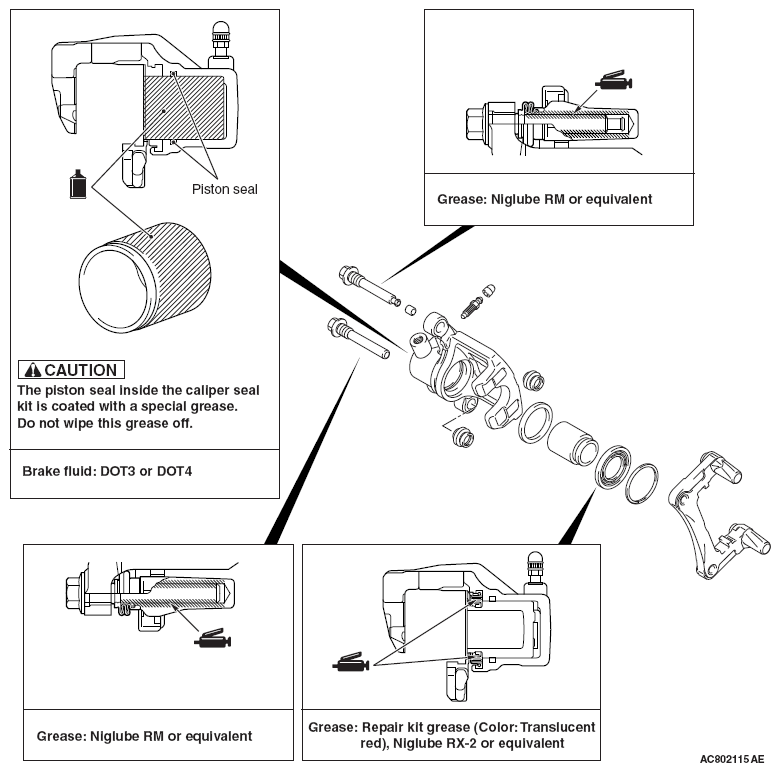

Fig 2: Identifying Rear Disc Brake Assembly Grease Applying Area (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
