Removal And Installation: Notes

WARNING: Certain components of this vehicles, such as TPMS transmitters, may contain perchlorate materials. Special handling may apply. For additional information, see www.dtsc.ca. gov/hazardouswaste/perchlorate.

CAUTION:

Ensure valve cap is always in place except when adjusting tire pressure.
If the valve core and valve cap are replaced, use a genuine replacement part. The valve core is similar to a conventional one, but uses nickel plating to avoid corrosion.
Replace the seal washer with a new one when the tire is replaced.
Do not drop the TPMS transmitter from height greater than 1 meter (3. 3 feet).
Do not expose the TPMS transmitter to extraneous magnetic fields.
TPMS transmitter should not be stored at temperatures above 80°C (176°F).
TPMS transmitter should not be exposed to temperatures above 100°C (212°F).
If the TPMS transmitter is replaced, execute "Tire Pressure Sensor ID Registration" on scan tool MB991958 "Special Function."
Be careful not to damage the TPMS transmitter.

Pre-removal Operation

Wheel and Tire Removal

Post-installation Operation

Wheel and Tire Installation
Tire Pressure Sensor ID Registration If a new TPMS transmitter is installed (Refer to ID registration procedure manual - ID codes registration judgement table).
After the tire pressure sensor ID registration, check that the TPMS warning light does not illuminate or flash.

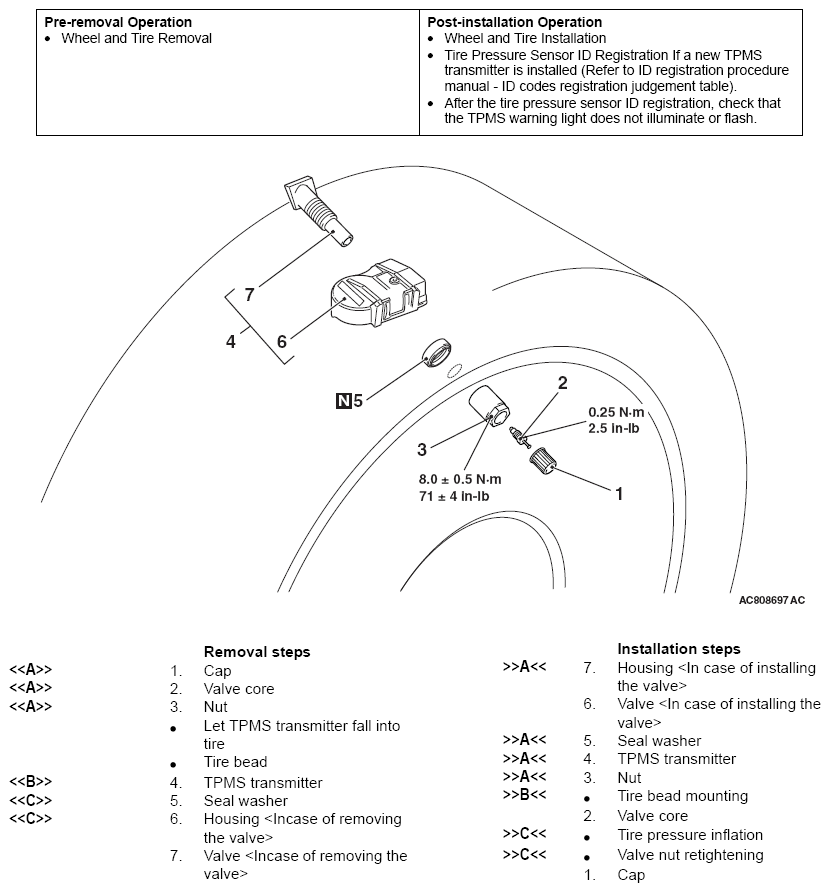

Fig 1: Removing/Installing TPMS Transmitter With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
