Handle Setting

  1. Select "Handle Setting" on "Service" screen.

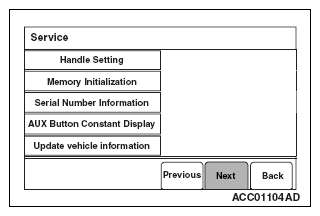

    Fig 1: Display - Service Screen
    G09630373Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Select the currently-set handle to display.
  3. To change the handle setting, select the handle to be changed to, and then select "Set."
    NOTE: Even when the handle is selected, the selected handle will not be set if "Back" is selected.

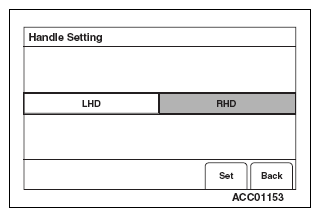

    Fig 2: Display - Handle Setting Screen
    G09630374Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
