< Receiver Antenna Module >

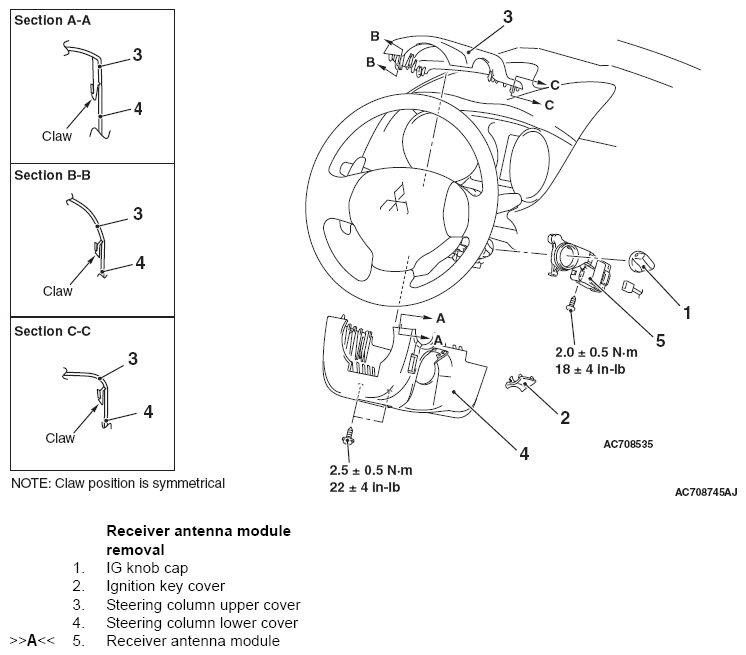

Fig 1: Receiver Antenna Module Replacement Components With Torque Specifications
G09627901Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
