How To Use The Inspection Procedures: Notes

The causes of many of the problems occurring in electric circuitry are generally the connectors, components, the ECU, and the harnesses between connectors, in that order. These inspection procedures follow this order. They first try to discover a problem with a connector or a defective component.

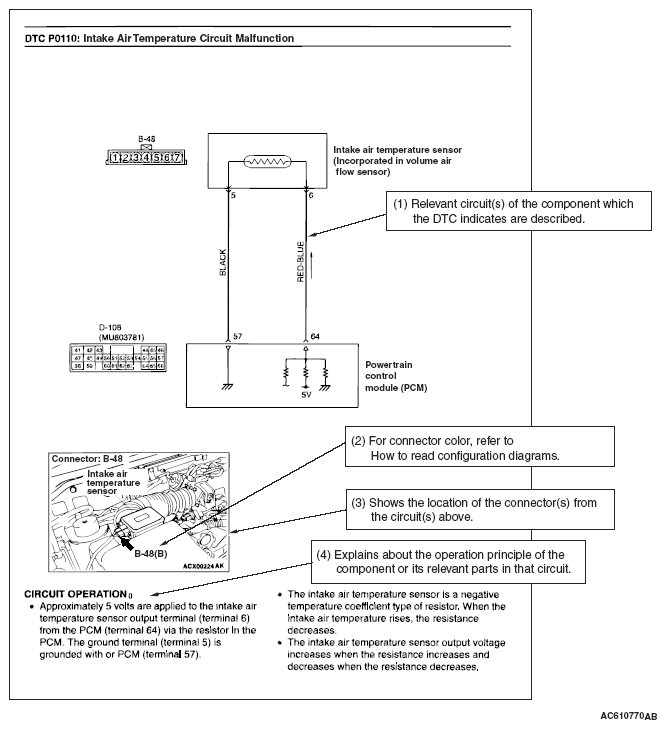

Fig 1: Intake Air Temperature - Circuit Diagram
G05373953Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

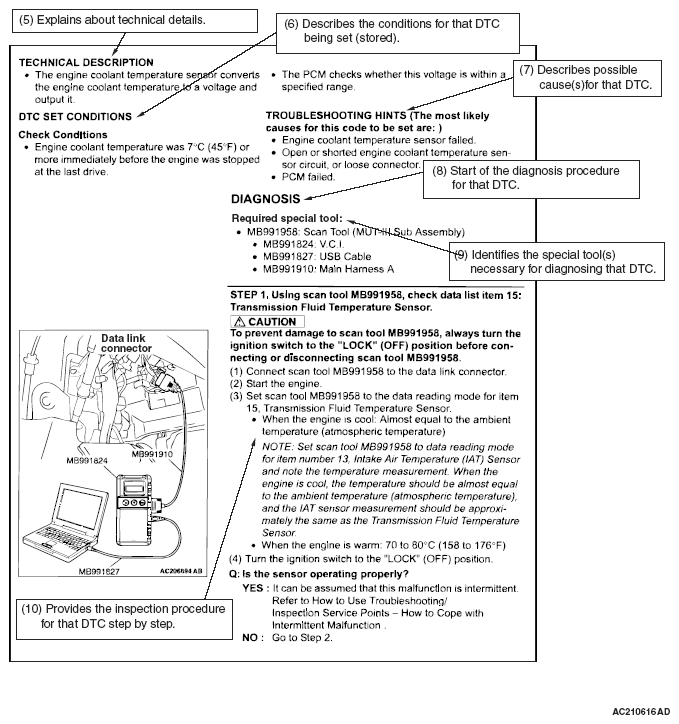

Fig 2: Connecting Scan Tool MB991958 To Data Link Connector
G05373954Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
