DTC B1B02: Driver's Air Bag Module (1st squib) System (Squib Circuit Open); DTC B1B06: Driver's Air Bag Module (2nd squib) System (Squib Circuit Open): Notes

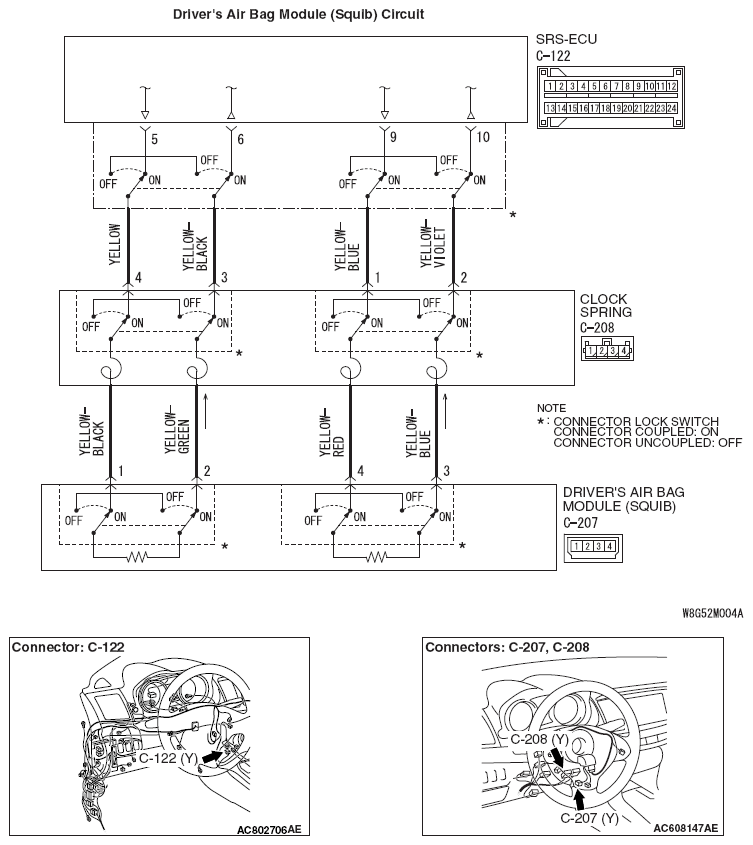

Fig 1: Driver'S Air Bag Module (Squib) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If DTC B1B02 < 1st squib > or B1B06 < 2nd squib > is set in the SRS-ECU, always diagnose the CAN main bus line.
• When DTC B1B02 is set in the following diagnosis, check the 1st squib circuit. When DTC B1B06 is set, check the 2nd squib circuit.
