>> B << Steering Column Bolt (Steering Column Shaft Assembly And Steering Gear & Linkage Connection) Installation

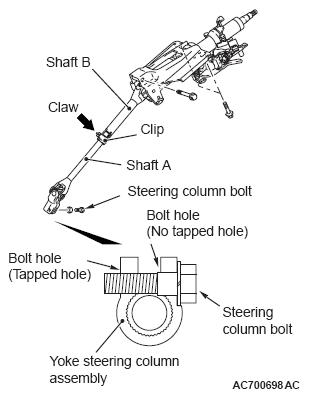

- While sliding shaft A from shaft B with the clip claw as shown in illustration being pinched, connect the steering column shaft assembly and the steering gear and linkage.
- Insert the steering column bolt from the no tapped bolt hole, and tighten it to the specified torque.
Tightening torque: 20 ± 5 N.m (15 ± 4 ft-lb)
