DTC P1723: Abnormality in Speed Sensor System Function: Notes

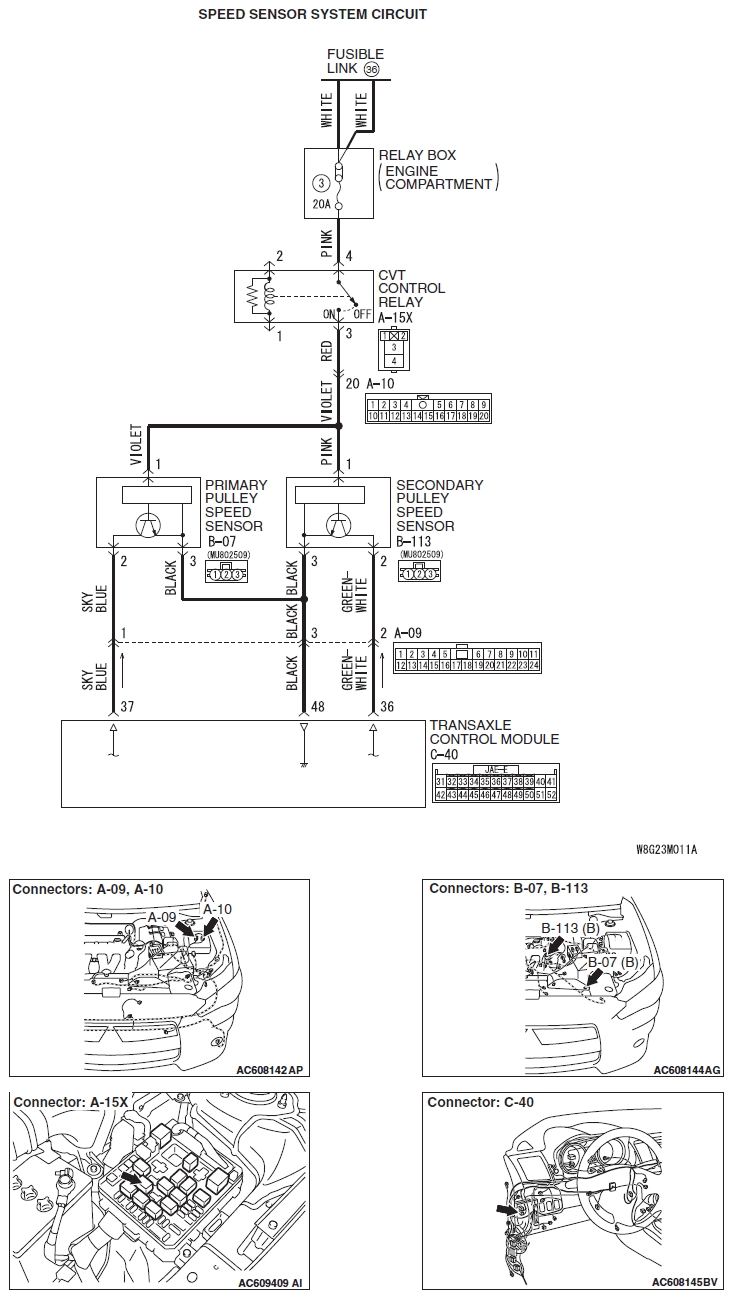

Fig 1: Speed Sensor System - Circuit Diagram
G09626129Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
