DTC B210A: +B power supply (low input); DTC B210B: +B power supply (high input): Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before replacing the ECU, ensure that the input and output signal circuits are normal.

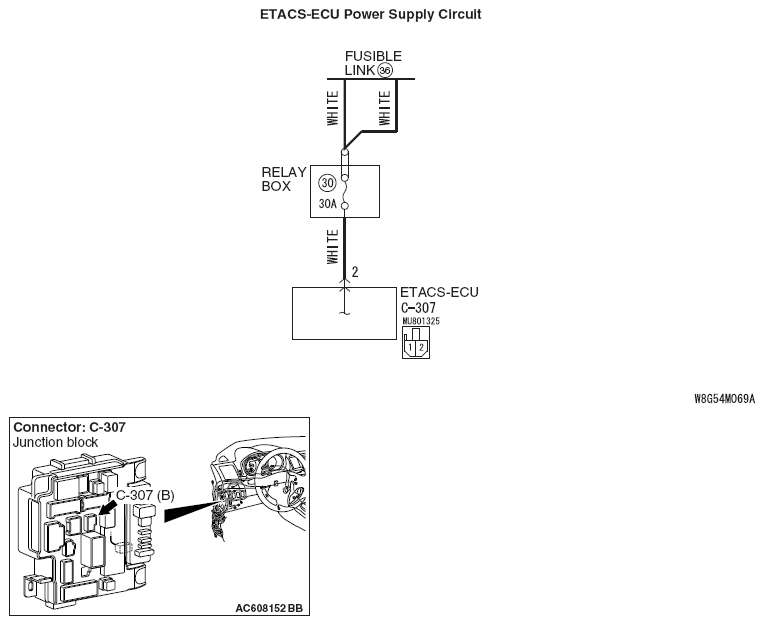

Fig 1: ETACS-ECU Power Supply - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
