Inspection Procedure 10: ETACS-ECU does not receive any signal from the hazard warning light switch: Notes

WARNING: This page is about a different variant/trim than selected.

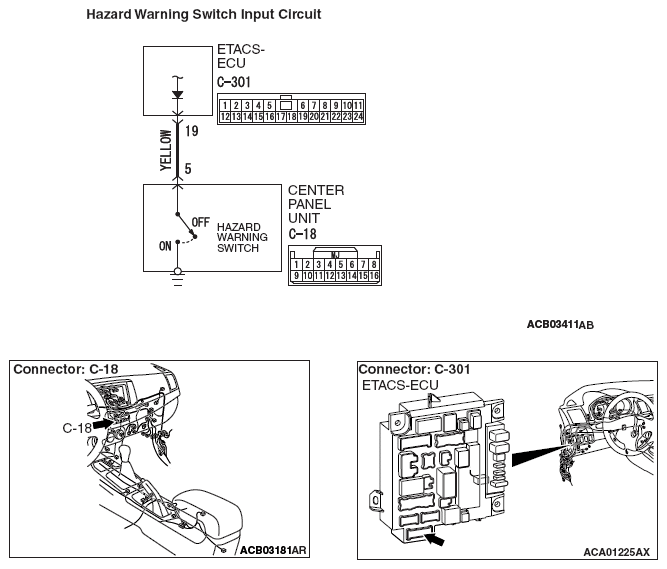

Fig 1: Hazard Warning Switch Input - Circuit Diagram
G09630591Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
